The global automotive industry is currently undergoing a monumental transformation—a shift of a magnitude unseen in a century. As the market penetration of new energy vehicles continues to climb and intelligent driving technology advances from driver assistance toward high-level autonomous driving, these profound changes are fundamentally reshaping the technical roadmaps and component requirements for automotive powertrain systems.

Steering System Gears: A Technological Leap from Mechanical Assistance to Steer-by-Wire

Technological Evolution and Market Trends

Steering system gears serve as core transmission components responsible for executing vehicle steering functions; they are widely utilized in various steering mechanisms, such as recirculating ball steering gears and rack-and-pinion steering gears. In recent years, driven by the widespread adoption of Electric Power Steering (EPS) systems and the industrial-scale implementation of Steer-by-Wire technology, the technical requirements and characteristics of steering gears have undergone a fundamental transformation.

At the core of the Electric Power Steering system lies a configuration in which an electric motor connects to the steering column or rack via a reduction gear mechanism, thereby enabling the electronically controlled regulation of steering assistance. Compared to traditional hydraulic power steering systems, this technical approach offers distinct advantages, including lower energy consumption, greater layout flexibility, and ease of integration with intelligent driving functionalities.

Steer-by-Wire technology, representing a more cutting-edge direction in development, eliminates the mechanical linkage between the steering wheel and the road wheels, relying entirely on electrical signals and motor actuation to execute steering maneuvers. This technological paradigm shift imposes a new set of stringent requirements on steering gears:

• High Transmission Precision: Gear backlash must be eliminated to ensure the precise and accurate transmission of steering commands.
• High Response Speed: The gear system must possess rapid dynamic response capabilities.
• Redundant Safety Design: Critical gear components must satisfy the requirements for Functional Safety Level ASIL-D.
• NVH Performance Optimization: With the elimination of mechanical linkages, gear-related noise becomes more perceptible to vehicle occupants.

Manufacturing Challenges and Breakthroughs

The manufacturing precision of steering gears directly influences steering feel and road feedback. In the precision machining of steering gears, gear profile accuracy is typically required to meet DIN Grade 5–7 standards, while gear surface roughness must be controlled to within Ra 0.4 μm. To satisfy these exacting requirements, the industry has generally adopted the following technical approaches:

• Hard-Finishing Techniques for Gear Surfaces: Steering gears frequently undergo a carburizing and quenching heat treatment process; consequently, controlling gear profile deformation following this heat treatment remains a critical manufacturing challenge. By optimizing heat treatment process parameters and employing finishing techniques such as gear grinding and honing, the total gear profile deviation can be controlled within 0.01 mm.
• Optimized Gear Profile Modification: Addressing the characteristic of frequent direction reversals in steering systems, profile modification techniques—such as tip relief and crowning—are employed to reduce meshing impact and noise, thereby enhancing steering smoothness.
• Application of New Materials: In high-end applications, some manufacturers have begun experimenting with powder metallurgy materials or surface coating technologies to reduce gear inertia while maintaining structural strength, thereby improving dynamic response performance.

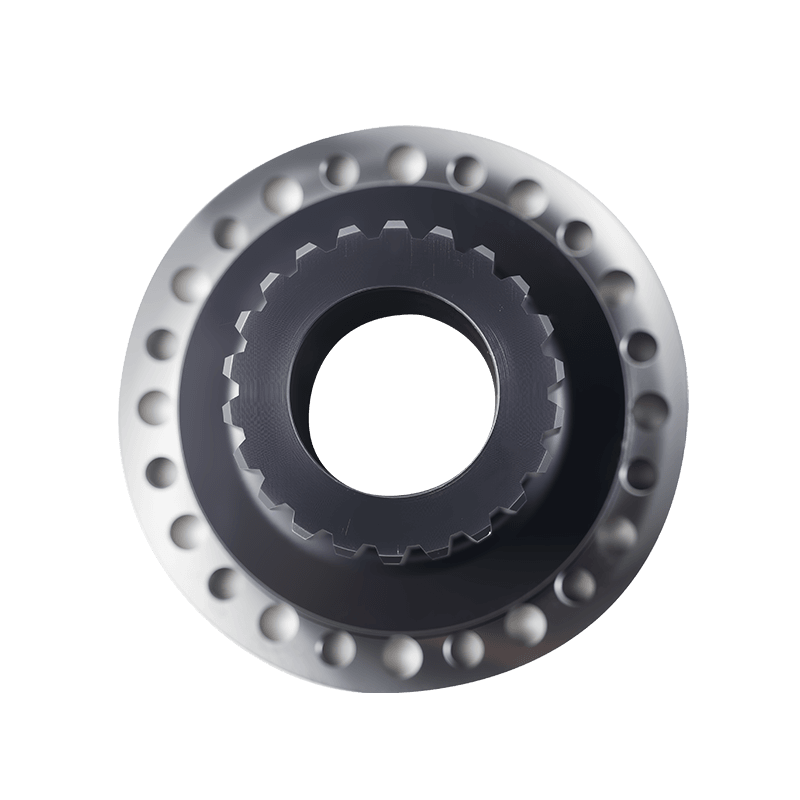

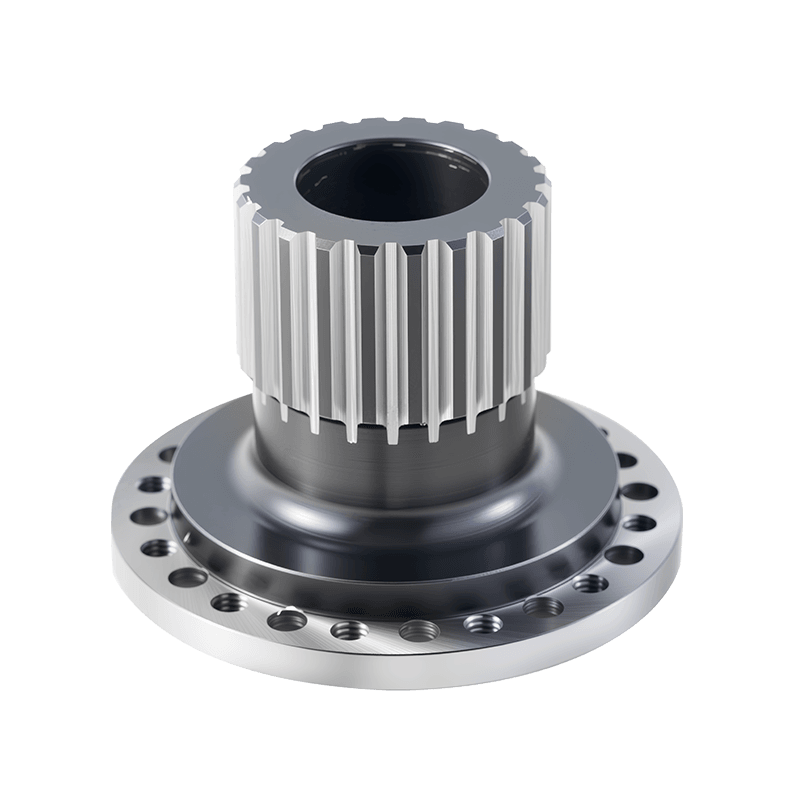

Transfer Case Gears: Demand Growth Driven by 4WD Technology Upgrades

Market Popularity and Technological Divergence in 4WD Systems

Transfer case gears serve as the core transmission components within four-wheel drive (4WD) systems, responsible for distributing engine power between the front and rear axles. In recent years, driven by the sustained surge in market popularity for SUVs and off-road vehicles—as well as the rapid advancement of new energy 4WD technologies—transfer case gears have encountered a new wave of market opportunities.

Currently, the technological landscape for 4WD systems exhibits a trend toward diversification:

• Traditional Mechanical Part-time 4WD: Features a simple and reliable structure, making it suitable for rugged, hardcore off-road vehicles.
• On-demand (Real-time) 4WD Systems: Automatically adjust torque distribution between the front and rear axles via multi-plate clutches or viscous couplings.
• Full-time 4WD Systems: Utilize a central differential to achieve continuous power distribution between the front and rear axles.
• Electric 4WD Systems: Employ a dual-motor layout (front and rear) in new energy vehicles, thereby eliminating the need for a mechanical transfer case.

Although electric 4WD systems are widely adopted in new energy vehicles, mechanical transfer cases continue to hold a significant position in hybrid and high-end internal combustion engine (ICE) vehicles. This is particularly true for plug-in hybrid electric vehicles (PHEVs), where the power coupling between the engine and the electric motor often still relies on gear mechanisms, thereby creating new application scenarios for transfer case gears.

Technical Characteristics and Performance Requirements

The operating environment for transfer case gears is characterized by heavy loads and complex operating conditions. During off-road driving, the gears must withstand severe torque shocks; conversely, during on-road driving, they must ensure smooth and stable operation at high speeds. Key technical requirements include:

• High Torque-Carrying Capacity: Transfer case gears are typically manufactured from high-strength alloy steel; their tooth surfaces undergo carburizing and quenching treatments to ensure that their contact fatigue strength and bending fatigue strength meet rigorous standards.
• High Transmission Efficiency: Gear meshing efficiency directly impacts the vehicle's fuel economy; by optimizing tooth profile parameters and surface treatment processes, single-stage transmission efficiency can be boosted to over 99%.
• Lightweight Design: While maintaining structural integrity, gear weight is reduced through structural optimization and material substitution, thereby contributing to a reduction in overall vehicle energy consumption.
• Sealing and Lubrication: The design of internal gear lubrication and sealing within the transfer case directly affects its service life—particularly its reliability under harsh operating conditions, such as water wading.

Precision Steering Gears: The Benchmark for Accuracy in the Era of Intelligent Driving

Definition of Accuracy Grades and Technical Value

Precision steering gears represent the pinnacle of steering gear manufacturing, typically achieving accuracy grades ranging from ISO 1328 Grade 4 to Grade 6. In intelligent driving systems, steering precision directly correlates with the accuracy and safety of vehicle trajectory tracking, making precision steering gears a critical foundational component for advanced autonomous driving systems.

The technical value of precision steering gears is manifested across multiple dimensions:

• Control Accuracy: Directly influences the lateral control precision of the autonomous driving system.
• Response Latency: Gear transmission backlash and elastic deformation can delays in steering response.
• Reliability: Maintains stable performance during prolonged, continuous operation.
• Functional Safety: Complies with the safety requirements for steering systems stipulated by the ISO 26262 standard.

Cutting-Edge Manufacturing Technologies

To meet the rigorous demands placed on steering gears by intelligent driving systems, the industry is advancing several manufacturing technology innovations:

• Ultra-Precision Gear Grinding: Utilizes CBN grinding wheels and CNC profile grinding techniques to achieve ultra-precision machining with a tooth profile accuracy of less than 0.003 mm.
• In-Process Measurement and Compensation: Measurement systems integrated directly into the machining tools detect tooth profile deviations in real-time and automatically adjust machining parameters, thereby ensuring consistency in mass production.
• Surface Integrity Control: Optimizes grinding process parameters and employs finishing techniques to control the residual stress state of the tooth surface, thereby enhancing the gear's fatigue life.
• Cleanliness Management: In advanced autonomous driving systems, gear wear particles can interfere with sensor operation; consequently, stricter requirements are imposed regarding gear cleanliness.

Comparison of Technical Characteristics for Three Categories of Gear Components
