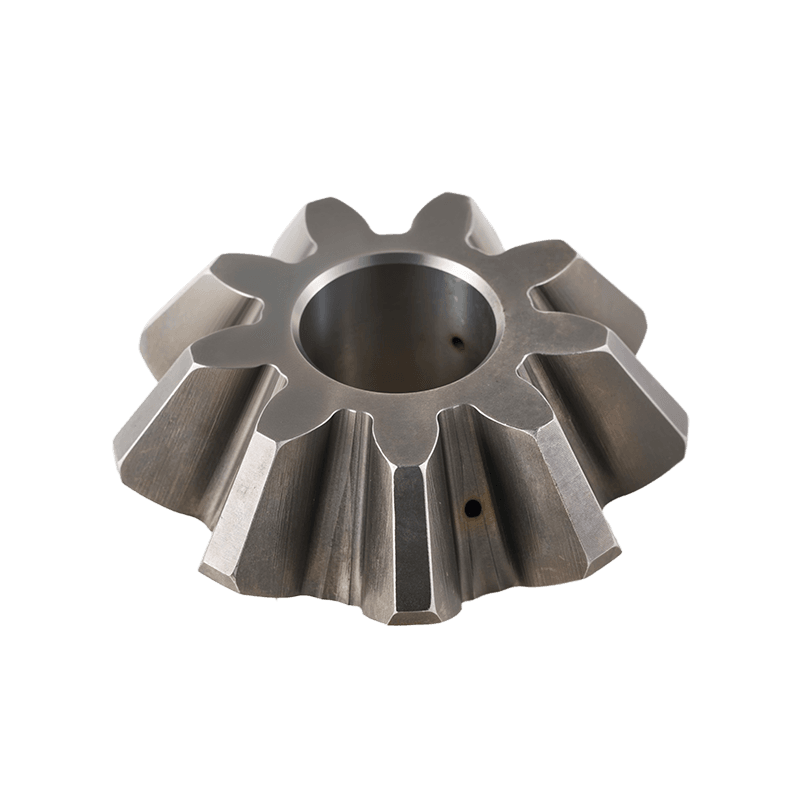

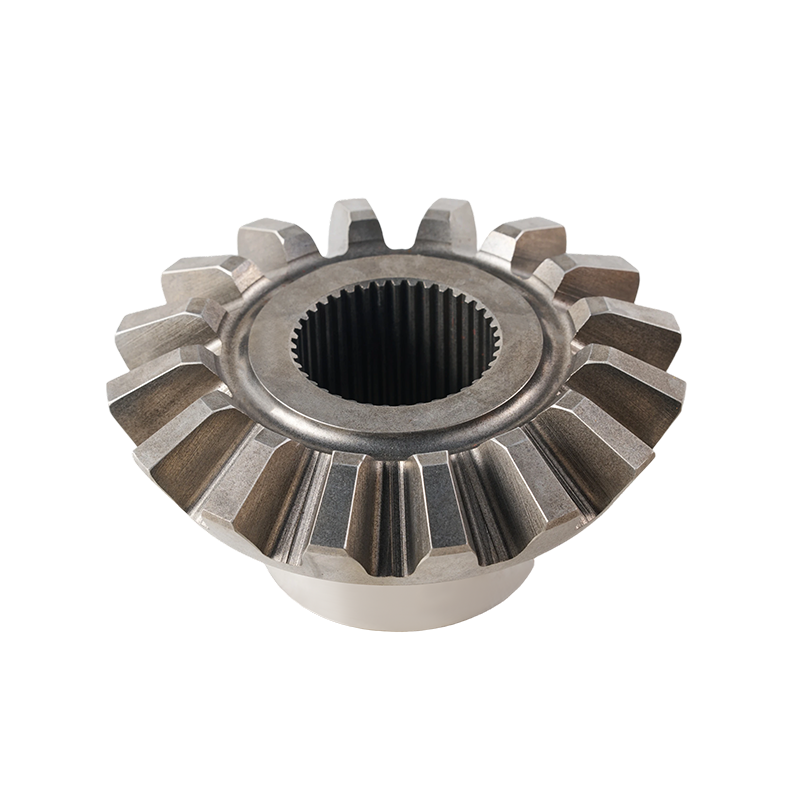

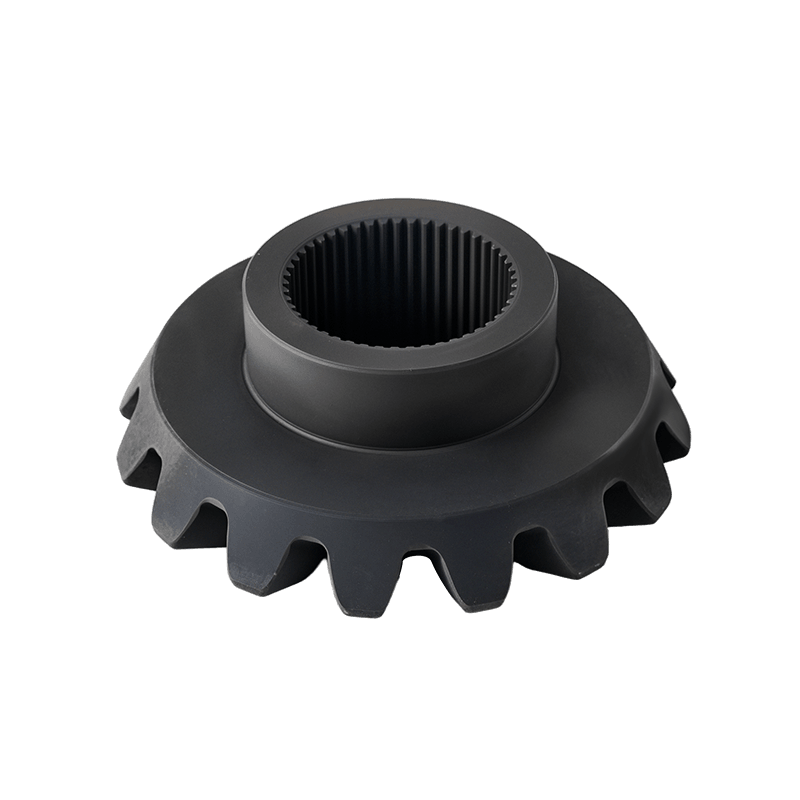

READ MOREThe final drive gear system is typically situated on both sides of the machine's chassis; it directly governs the equipment's travel capability, traction performance, and low-speed stability. Since the equipment frequently operates in complex environments—such as muddy terrain, gravel surfaces, and inclines—the final drive gears must not only withstand heavy loads but also possess robust shock resistance.

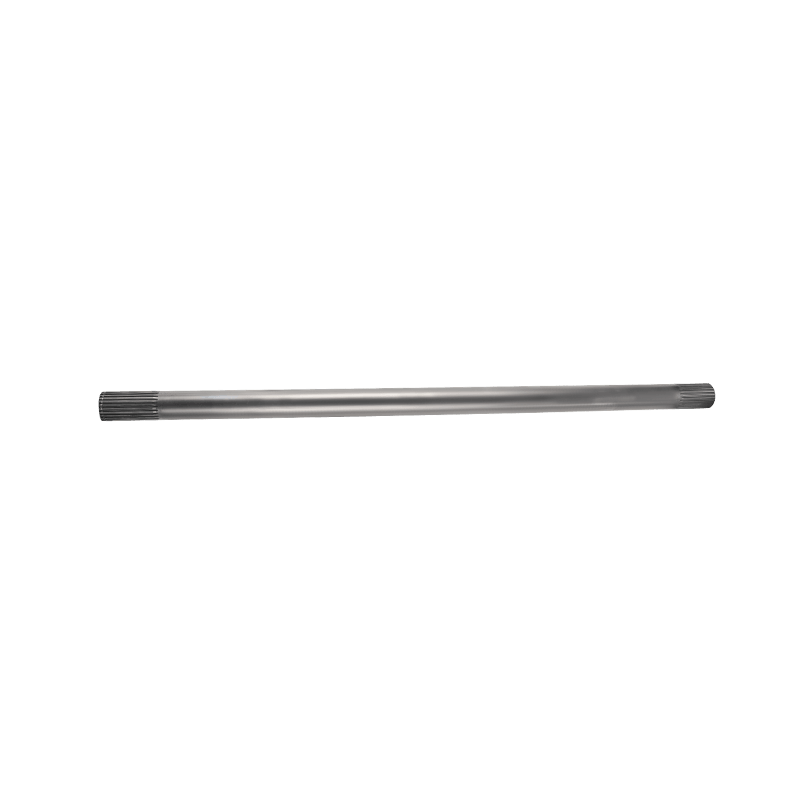

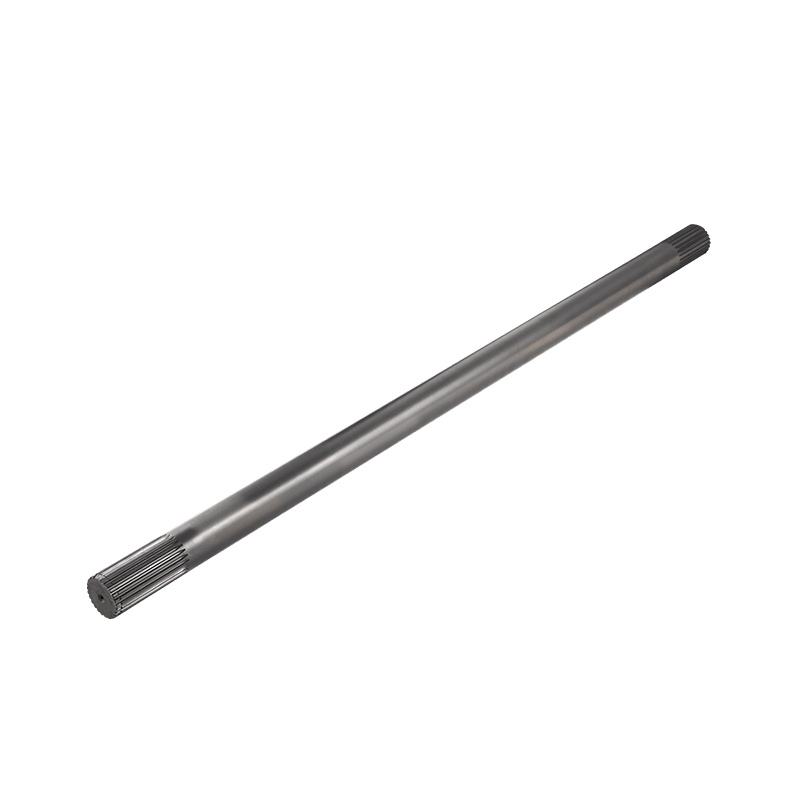

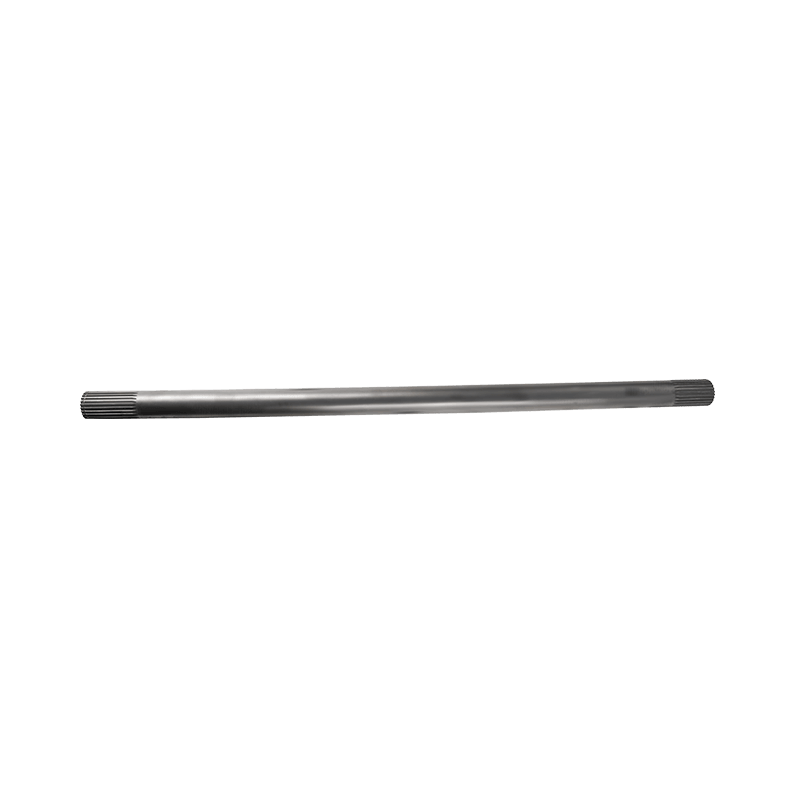

A typical travel final drive system consists of a hydraulic motor input, a reduction gear train, a planetary gear mechanism, an output shaft, and an external housing.
The hydraulic motor generates high-speed rotational power, which is then transmitted through a multi-stage reduction mechanism to decrease rotational speed while simultaneously increasing torque. Finally, this power is transmitted via the output gear to the drive wheel or track sprocket, enabling the equipment to execute forward, reverse, and steering maneuvers.
The entire final drive assembly is typically housed within a sealed gearbox to prevent the ingress of mud, moisture, and dust into the gear meshing zones.
In certain heavy-duty equipment, the final drive system may employ a dual-stage or triple-stage reduction structure to accommodate exceptionally high load requirements.

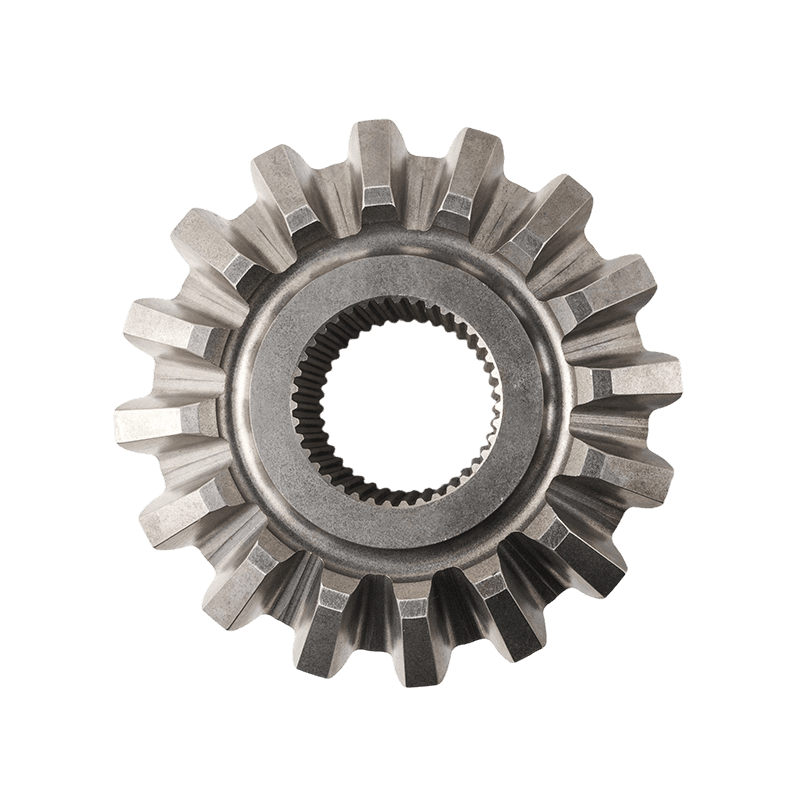

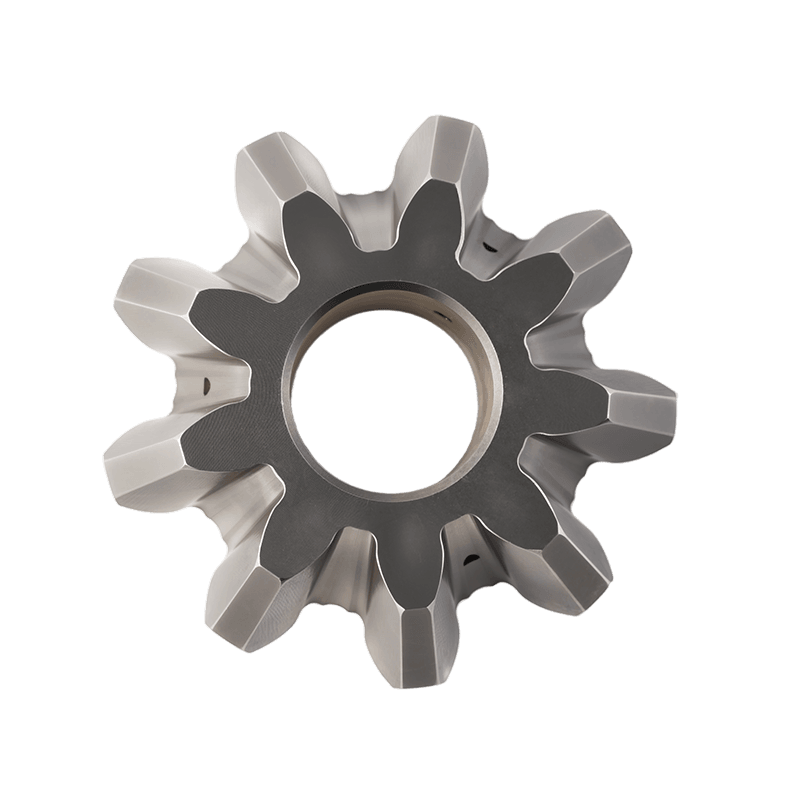

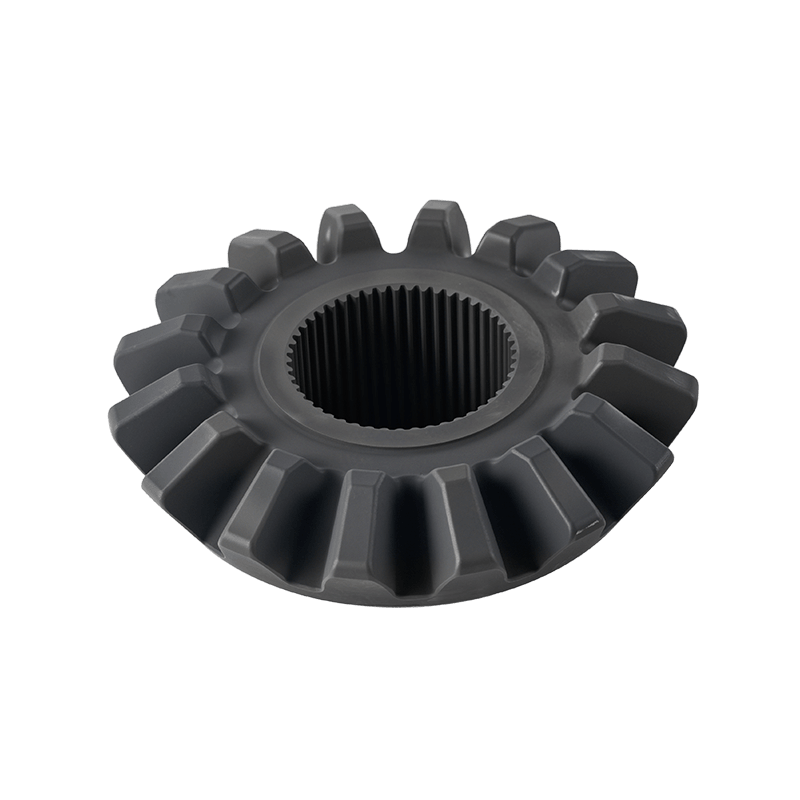

Final drive systems utilize a variety of gear configurations, with different structures tailored to suit specific operational requirements.

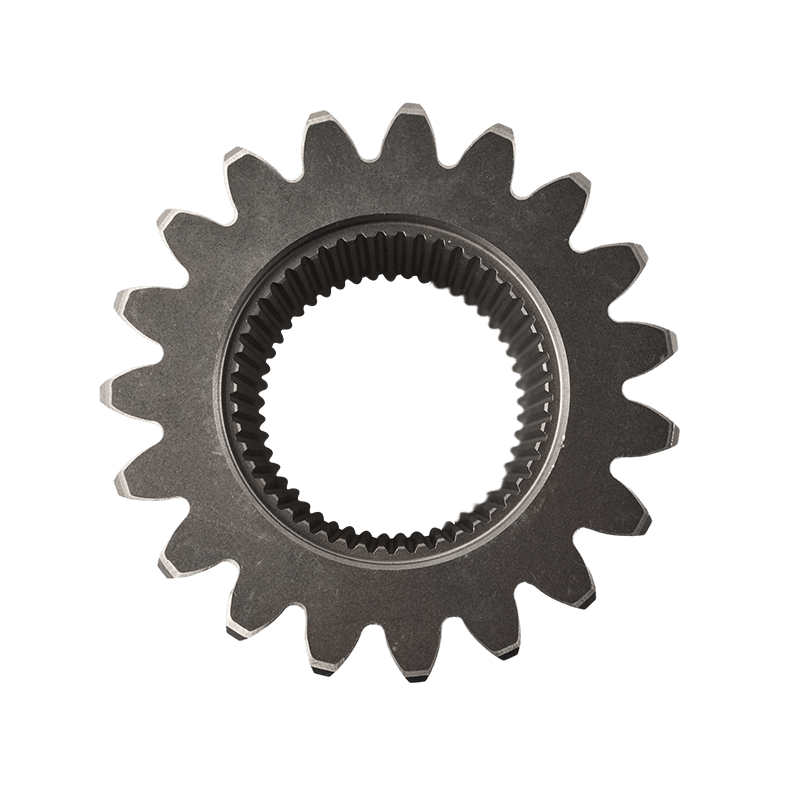

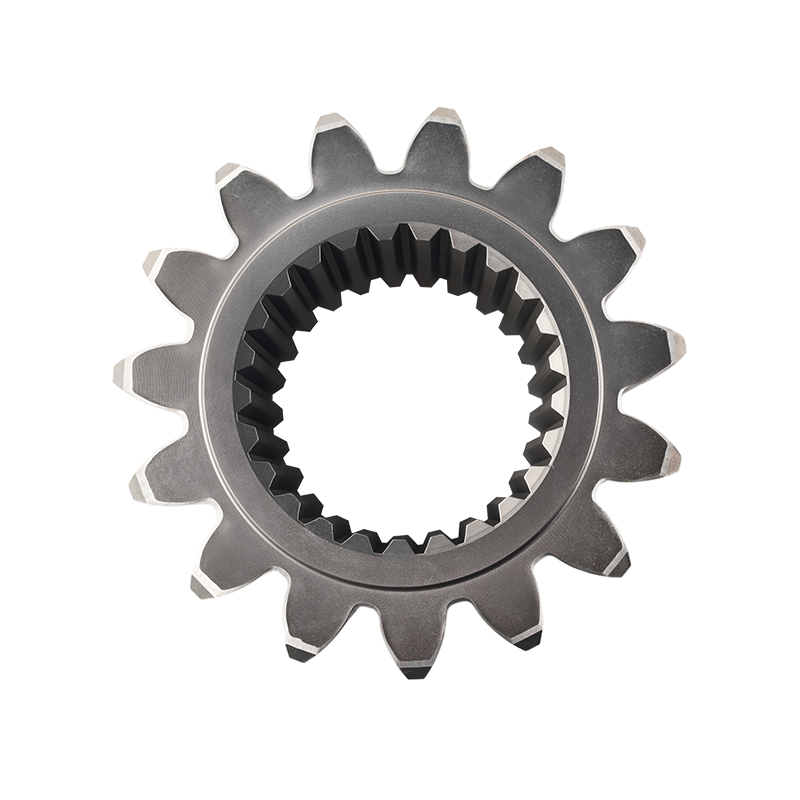

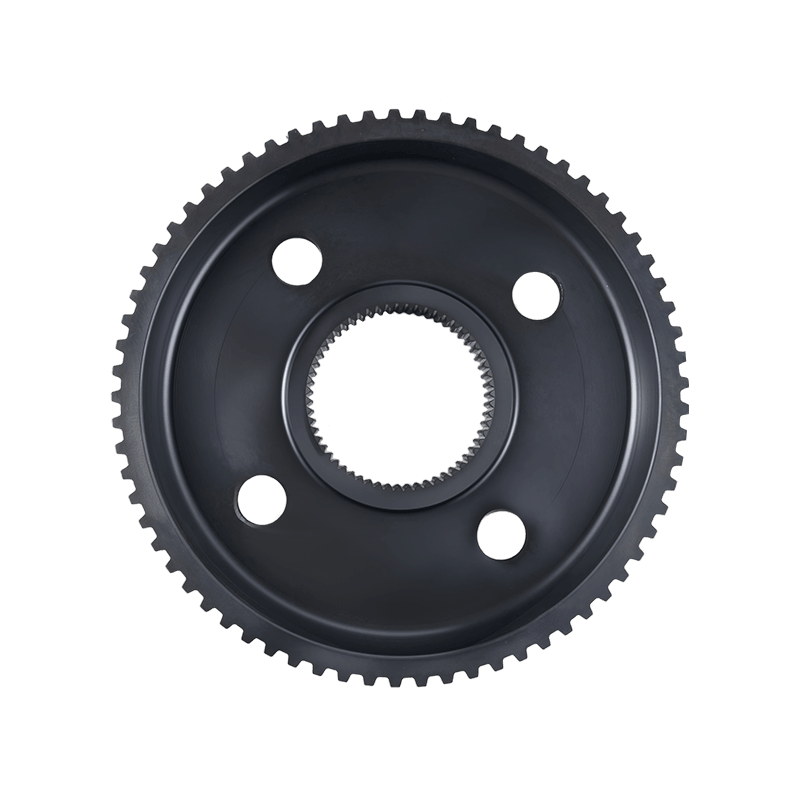

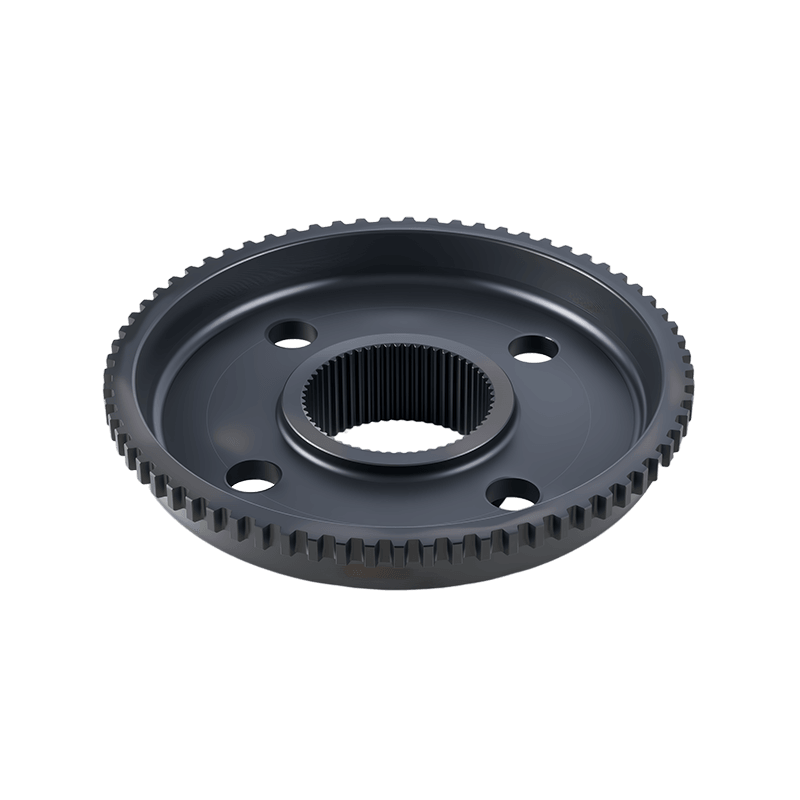

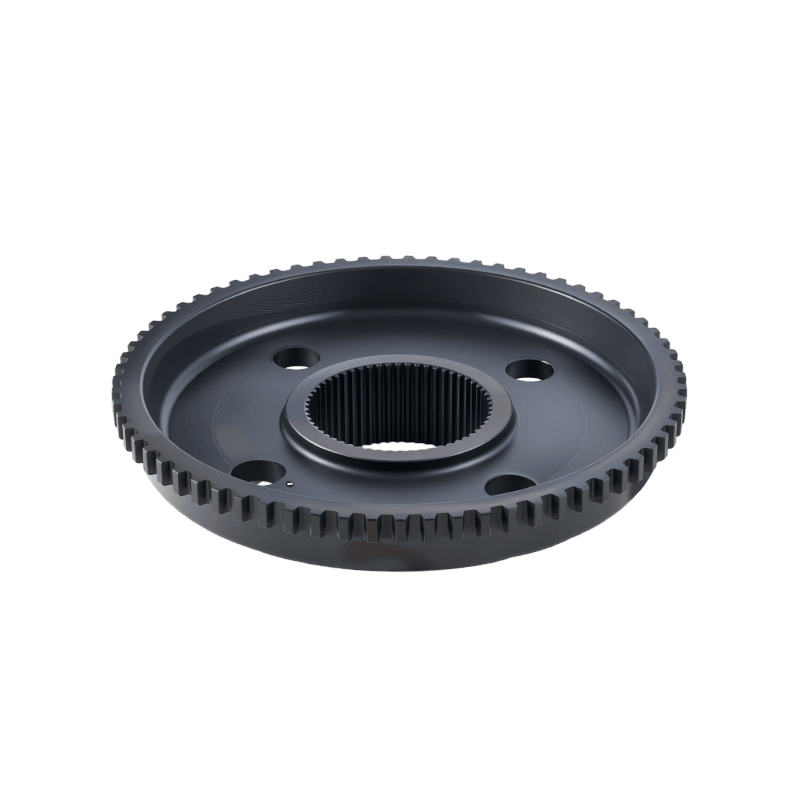

| Gear Type | Structural Characteristics | Primary Function | Application Location |
| Spur Gear | Simple manufacturing structure | Basic power transmission | Primary reduction stage |
| Helical Gear | Smoother meshing action | Reduces vibration and noise | Main reduction zone |
| Planetary Gear | Compact structure | High-torque reduction output | Final reduction mechanism |
| Internal Ring Gear | Teeth located on the interior | Enhances transmission stability | Planetary reduction system |
These gear configurations are typically utilized in combination to satisfy the equipment's power demands under low-speed, high-load operating conditions.

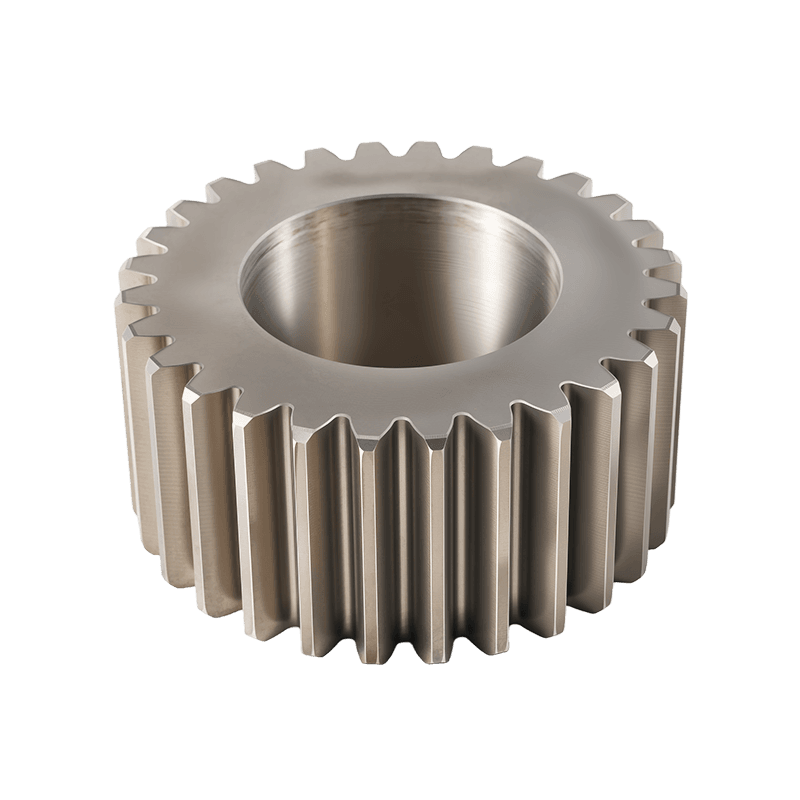

Within the final drive system, the planetary reduction mechanism represents one of the more common structural configurations.

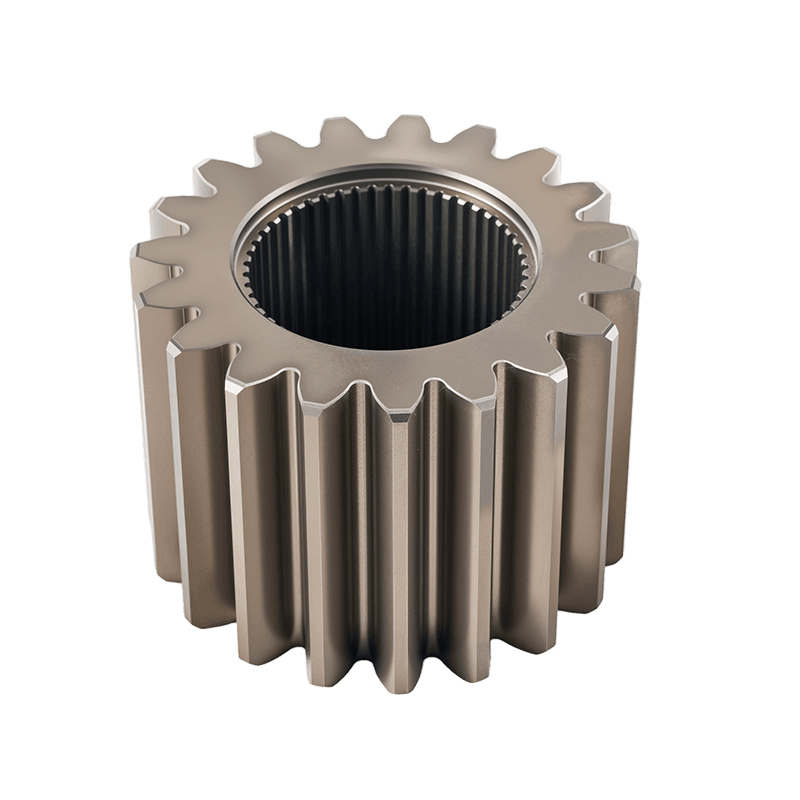

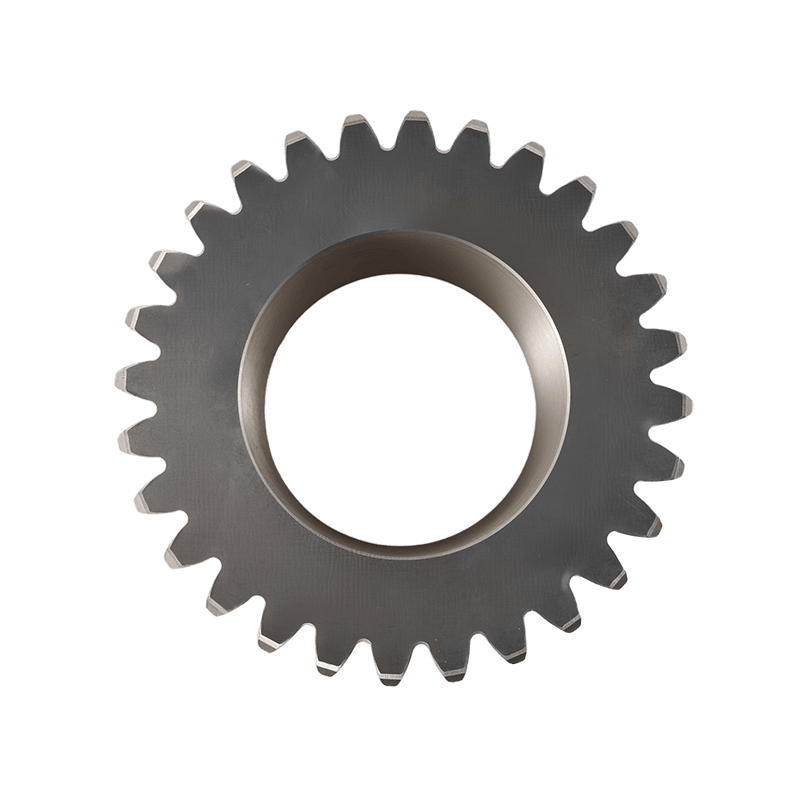

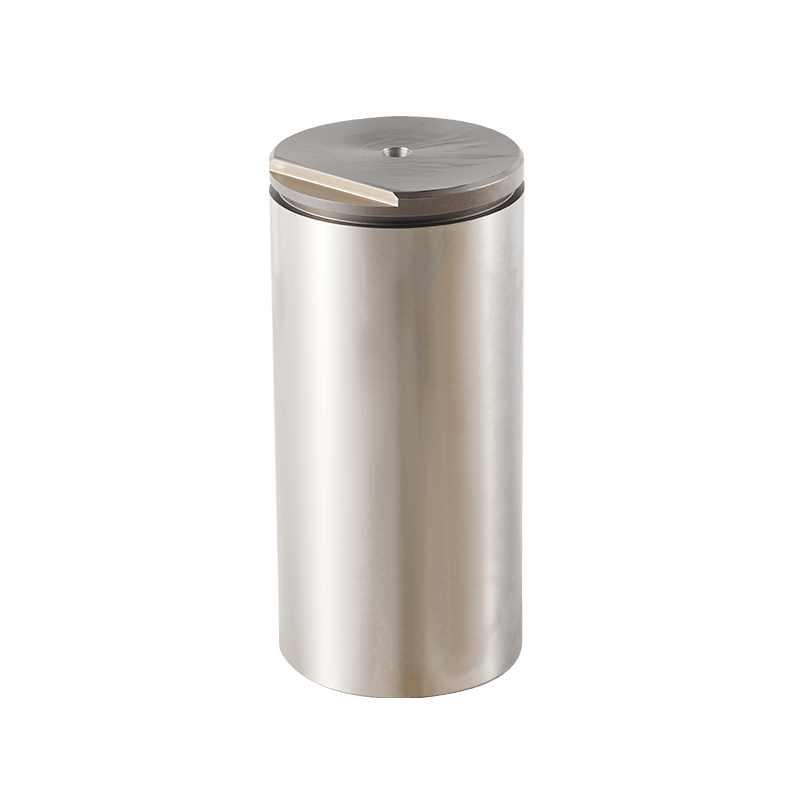

This mechanism typically comprises a sun gear, planetary gears, a planetary carrier, and an internal ring gear. Upon power input, the multiple planetary gears rotate around the central sun gear, thereby achieving speed reduction and torque amplification. Compared to standard gear reduction structures, planetary gear mechanisms possess the following characteristics:
Since the load is shared collectively by multiple planetary gears, this structural design effectively mitigates the risk of excessive stress being concentrated on any single gear.
The gears within the final drive system are subjected to sustained high loads and alternating impact forces over extended periods; consequently, material properties play a critical role in ensuring the overall stability of the system.
Common materials utilized for gears include alloy structural steels and carburizing steels. Following appropriate heat treatment, these materials achieve an good balance between surface hardness and core toughness.
Common heat treatment processes include:
Through the application of these processes, the gears' wear resistance is enhanced, and the likelihood of fatigue crack initiation is significantly reduced.
In certain high-load applications, the gear tooth surfaces undergo precision grinding to further improve meshing accuracy.
As the final drive system is typically situated in close proximity to the vehicle chassis, it is frequently exposed to external contaminants such as mud, moisture, and gravel.
To safeguard the internal gear components, final drive systems typically incorporate a multi-layer sealing design.
Common sealing elements include:
These structural elements effectively prevent the ingress of external contaminants into the gearbox while simultaneously preventing the leakage of lubricating oil.
In humid environments or muddy operating conditions, a robust sealing structure is essential for maintaining the stable and reliable operation of the gear system.
During long-term operation, the gears within the final drive system may exhibit various forms of wear and degradation.
Common issues include:
| Failure Type | Root Cause | Primary Impact |
| Tooth Surface Wear | Insufficient lubrication or contaminant ingress | Reduced meshing accuracy |
| Pitting | Excessive contact stress | Localized damage to the tooth surface |
| Tooth Root Cracks | Frequent impact loading | Compromised structural strength |
| Meshing Noise/Abnormal Sound | Abnormal clearances or assembly deviations | Unstable operation |
If left unaddressed over time, these issues can compromise the operational stability of the equipment; therefore, regular inspection and maintenance are essential.
During the installation of the final drive gear system, it is essential to ensure the precise alignment of the gear center distance and bearing positions.
Significant assembly deviations may result in uneven load distribution across the gears, thereby accelerating wear.
During maintenance, the following items typically require inspection:
For equipment in long-term operation, it is also necessary to periodically replace the lubricating oil and remove impurities from within the gearbox.
Adherence to proper maintenance protocols helps ensure the stable operation of the final drive system.
