Construction & Earthmoving Gears

Engineering earthmoving equipment performs a variety of tasks at construction sites—including excavating, loading, dozing, and leveling—and its power transmission system must maintain stable operation under conditions involving high loads, frequent impact, and complex working environments. As a core component of power transmission, the transmission gear plays a vital role in linking the power source to the actuators during the machine's overall operation.

Structural Composition of Transmission Gear Systems

Transmission gear systems in engineering machinery typically consist of an input gear set, a reduction gear set, a distribution gear set, and an output gear mechanism; power transmission and regulation are achieved through multi-stage meshing among these various sections.

The input gear set is primarily responsible for receiving the power output from the engine; the intermediate reduction structure serves to adjust the speed and torque ratio; and the output gear transmits the power to the travel mechanism or the working implement.

In actual operation, these gear units are often assembled in a modular fashion to facilitate adaptation to varying construction conditions.

Gear Types and Application Characteristics

A wide variety of gear types are utilized in engineering earthmoving equipment, with distinct differences in structure and function among them.

Different combinations of gears allow for the realization of various transmission effects within a limited spatial envelope, thereby enabling the equipment to maintain adaptability across diverse operating environments.

Characteristics of Materials and Manufacturing Processes

Gears in engineering machinery typically endure significant impact loads and sustained pressure; consequently, material selection must strike a balance between strength and toughness. Common materials primarily consist of alloy steels, with performance further enhanced through various heat treatment processes.

During the manufacturing process, gears typically undergo precision cutting, heat treatment, and surface strengthening treatments to increase tooth surface hardness and small wear rates. Carburizing treatments enhance the wear resistance of the surface layer, while quenching processes improve overall structural strength. Furthermore, for certain critical transmission gears, surface hardening or shot peening treatments are often applied to enhance their fatigue life.

Power Transmission and Speed ​​Reduction Structures

Earthmoving equipment requires substantial driving force during operation; consequently, transmission systems typically employ multi-stage speed reduction structures to convert the engine's high-speed, low-torque output into a low-speed, high-torque form.

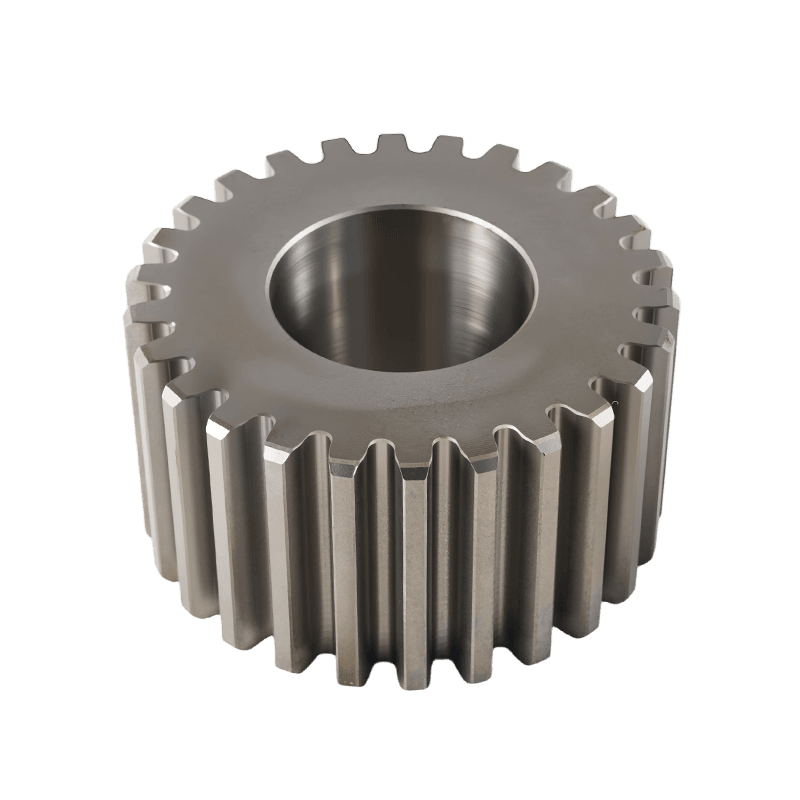

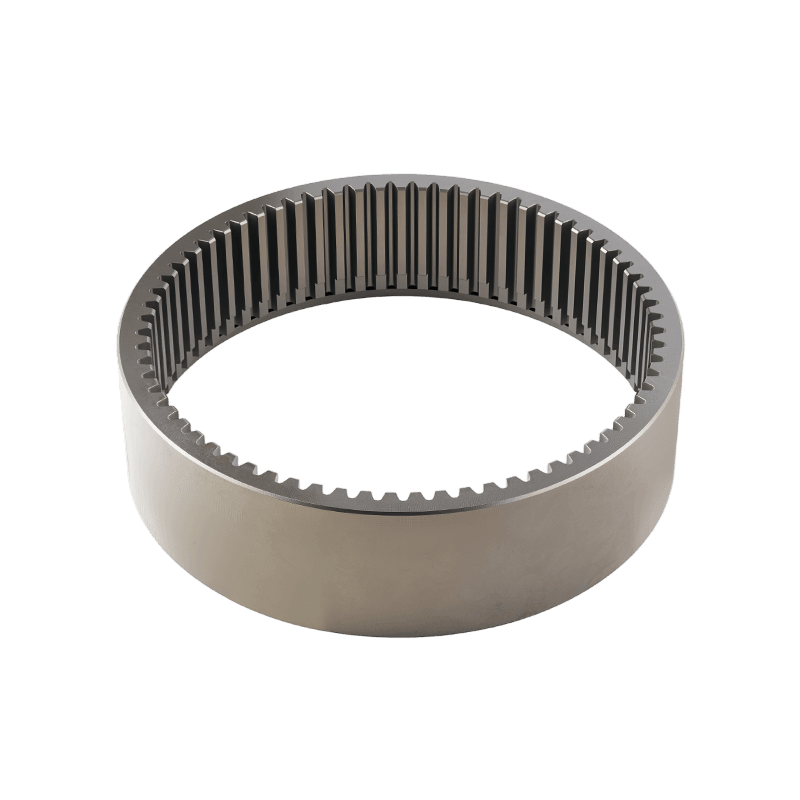

Planetary gear mechanisms play a pivotal role in this process. Characterized by multiple planetary gears rotating around a central gear, these mechanisms enable multi-stage speed reduction as well as torque distribution.

Under varying operating conditions, different transmission ratios can be achieved by altering the gear meshing paths, thereby adapting the equipment to distinct operational modes such as excavating, dozing, or transporting.

Structural Layout and Spatial Design

Given the limited internal space within construction machinery, the design of gear systems must prioritize compactness and a rational layout.

Transmission shafts and gear sets are typically arranged in a layered configuration to small structural interference while simultaneously enhancing power transmission efficiency. In certain designs, a coaxial arrangement is adopted—aligning the input and output shafts—to further reduce energy loss.

Additionally, to accommodate the diverse structural forms of different equipment, gearboxes are frequently designed with a modular architecture, facilitating ease of assembly, disassembly, and maintenance.

The Role of Gear Systems in Earthmoving Equipment

During the operation of earthmoving equipment, the gear system serves not only to transmit power but also, to a significant extent, influences the equipment's operational efficiency and stability.

For instance, during excavation operations, the gear system must deliver a stable and continuous torque output to ensure the bucket can smoothly cut into the soil. Conversely, during dozing or hauling operations, a relatively uniform distribution of power is required to prevent slippage of the tracks or wheels.

Furthermore, under conditions involving frequent starts and stops, the gear system must possess robust shock-resistance capabilities to mitigate the structural impact of transient loads.

Lubrication and Cooling System Design

Since gears generate significant frictional heat during high-speed meshing, the lubrication system plays a critical role within the overall structural assembly.

Common lubrication methods include oil bath lubrication and forced-circulation lubrication; these systems create a protective oil film between the gear teeth, thereby reducing wear and limiting temperature rise. Under high-load operating conditions, a cooling system is also employed to regulate the gearbox temperature, thereby ensuring the stability of the lubricant's performance.

The selection of lubricant is typically adjusted based on the ambient operating temperature and load conditions to ensure adequate fluidity and load-bearing capacity.

Comparative Analysis of Typical Gear Structures

The combined use of different structural types allows for meeting the power requirements of construction machinery across a wide range of operating conditions.

Operational Wear and Influencing Factors

During long-term operation, gears inevitably experience wear; the primary factors influencing this wear include load magnitude, lubrication status, and meshing precision.

Under high-load and impact-prone operating conditions, gear tooth surfaces may develop pitting or fatigue cracks, while insufficient lubrication accelerates the wear process.

Furthermore, assembly errors can uneven meshing, resulting in localized stress concentrations.

To mitigate these effects, it is typically necessary to control machining precision during the design phase and conduct periodic inspections during operation.

Maintenance and Operational Management

Maintenance of gear systems in construction machinery primarily involves lubricant checks, gear tooth surface inspections, and clearance adjustments.

During daily operation, the lubricant must be changed periodically—based on operational intensity—to maintain proper lubrication of the gear surfaces. Concurrently, vibration and noise monitoring can be utilized to assess whether gear meshing is functioning normally.

For equipment that has undergone prolonged operation, periodic disassembly and inspection are required to evaluate the extent of gear wear and to perform any necessary replacements or repairs.
