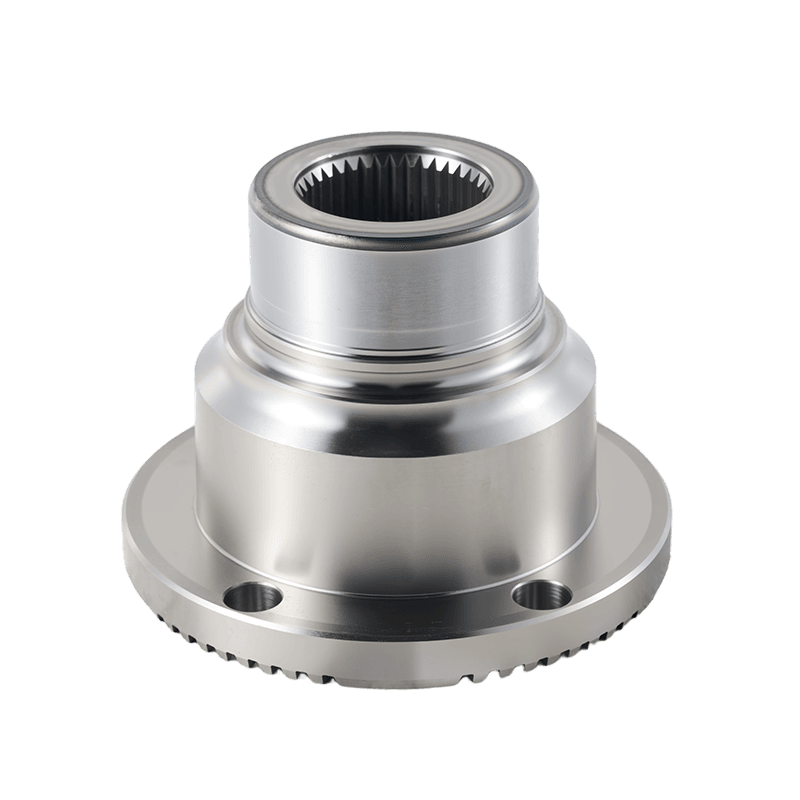

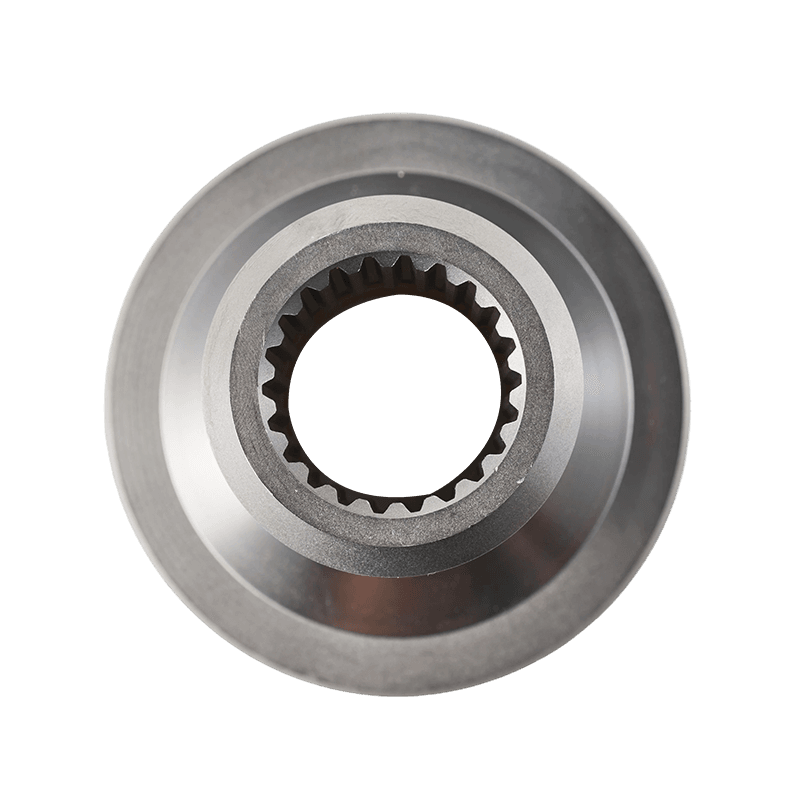

Axle & Differential Gears

The automotive transmission system serves as the core conduit for power transfer within a vehicle, and gear assemblies constitute the indispensable, critical components within this channel. The power output from the engine must undergo multi-stage conversion and distribution via gears before it can ultimately drive the wheels and propel the vehicle.

Main Reducer Gear Set: The "Strategic Gateway" of Power Transmission

Structure and Operating Principles

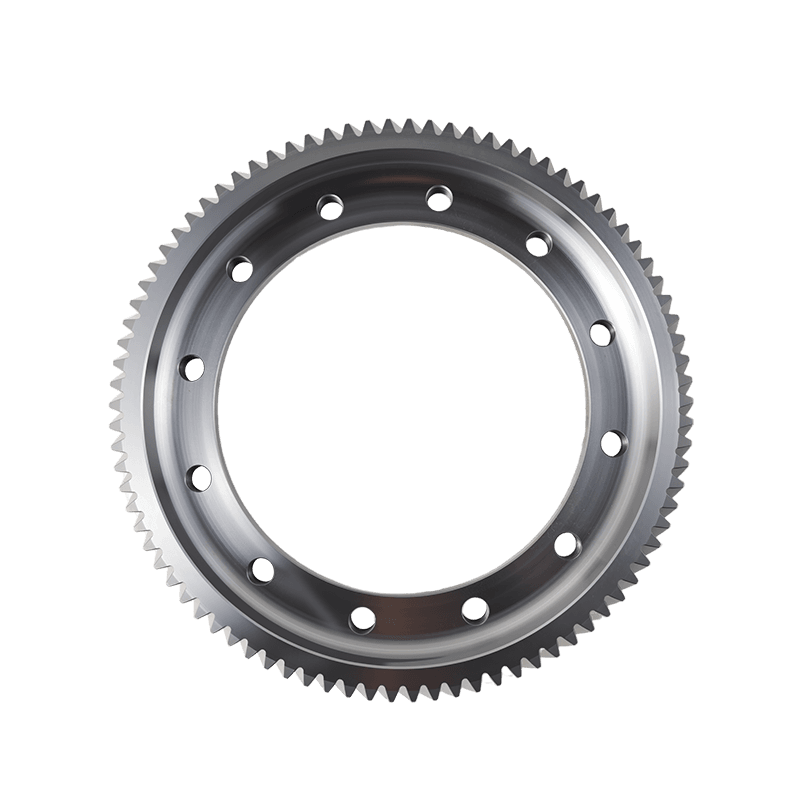

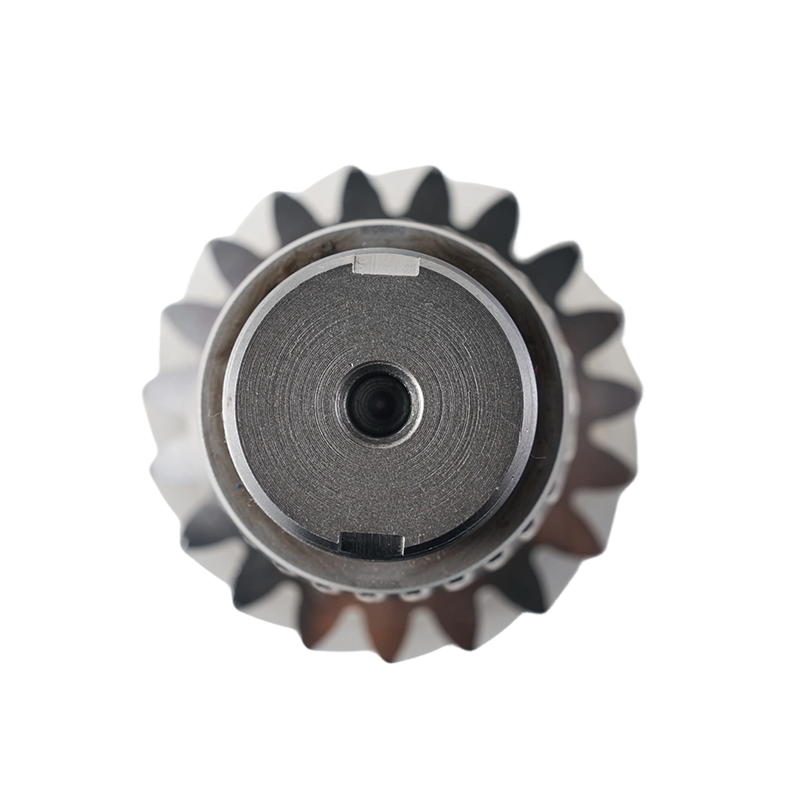

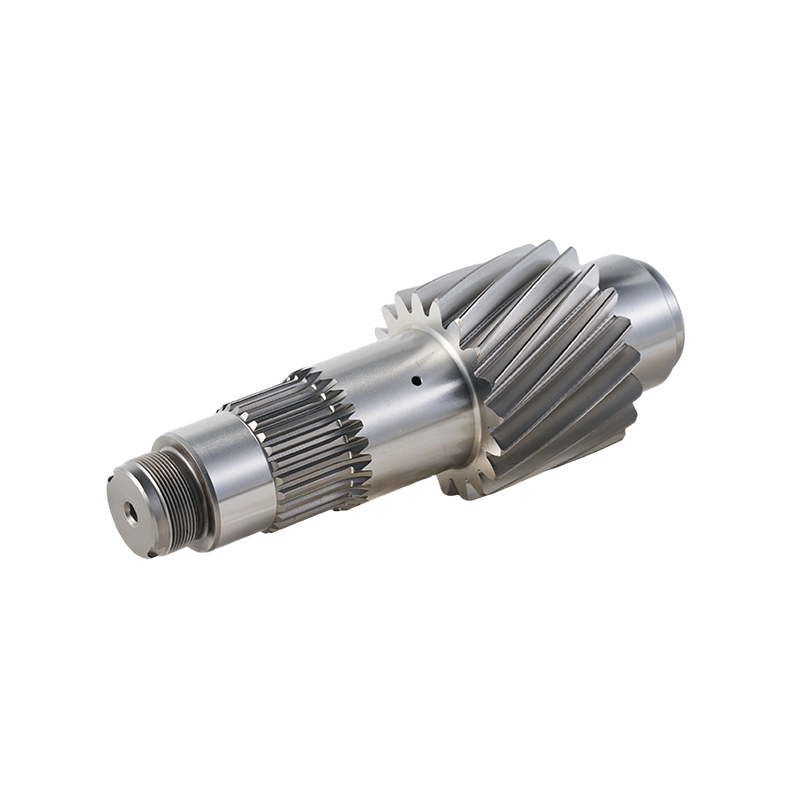

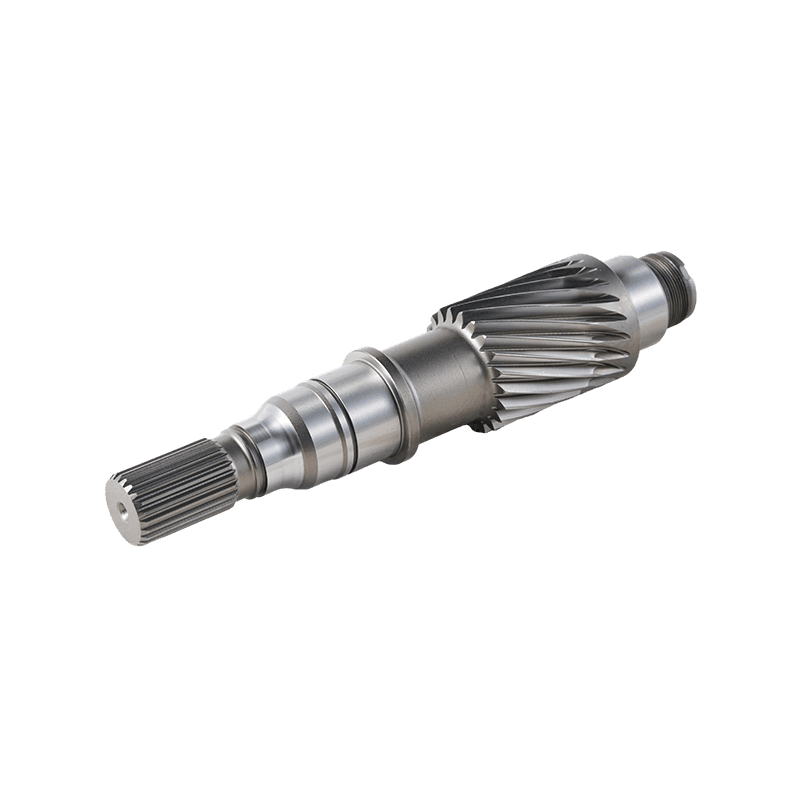

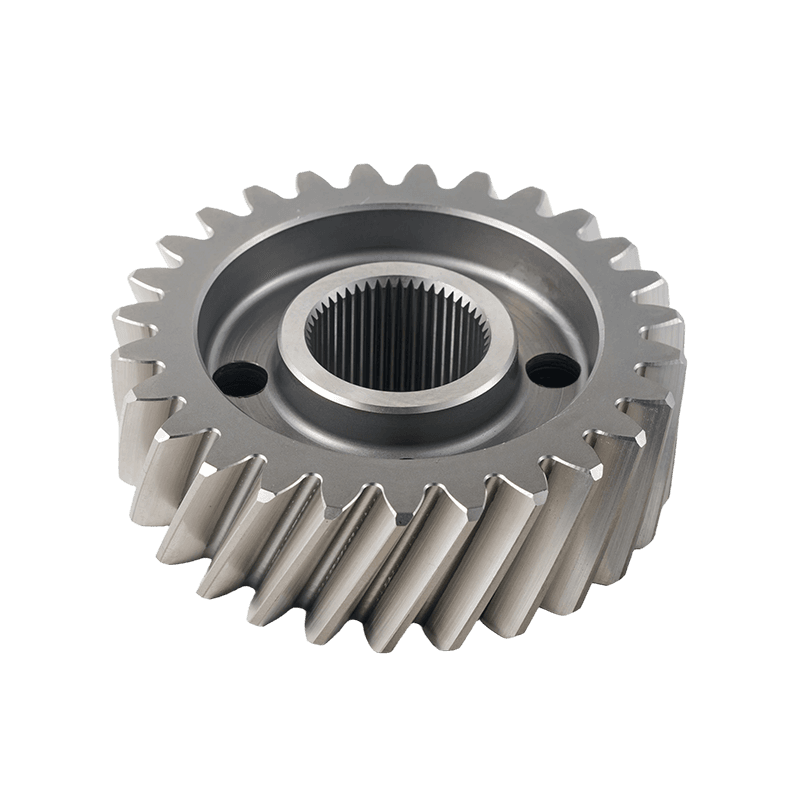

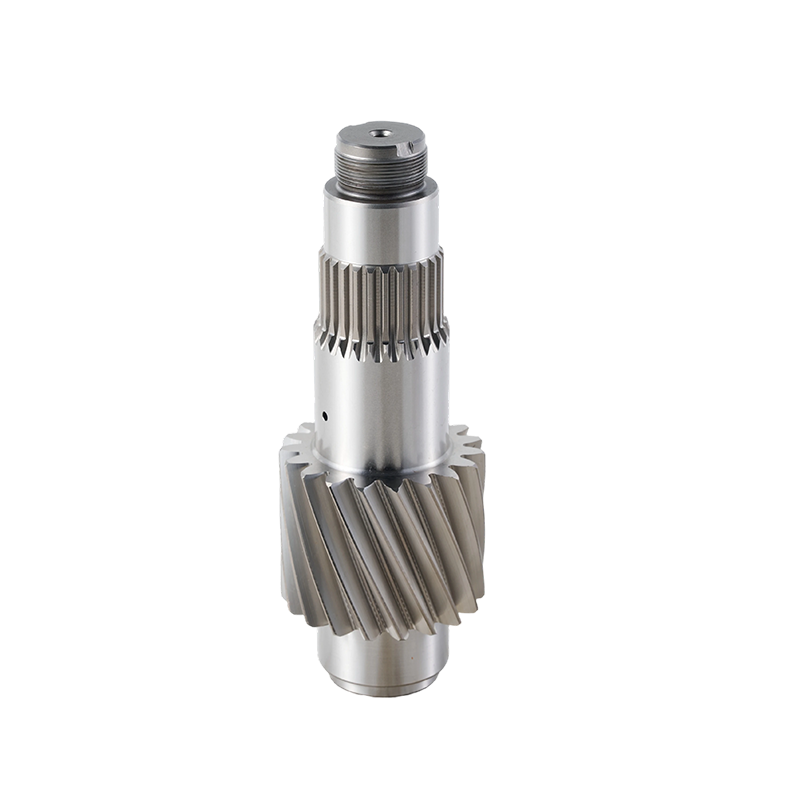

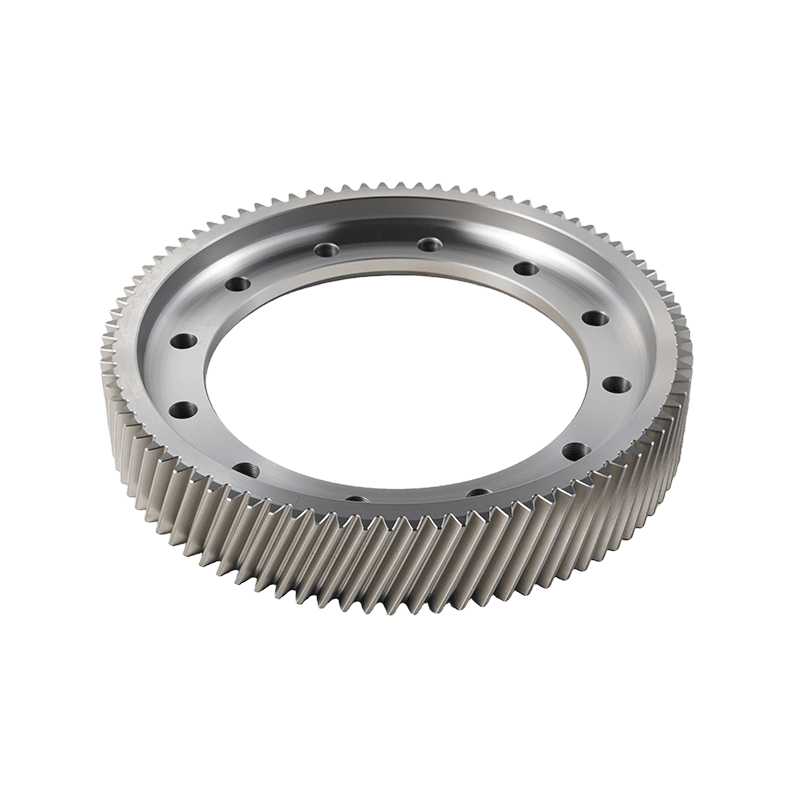

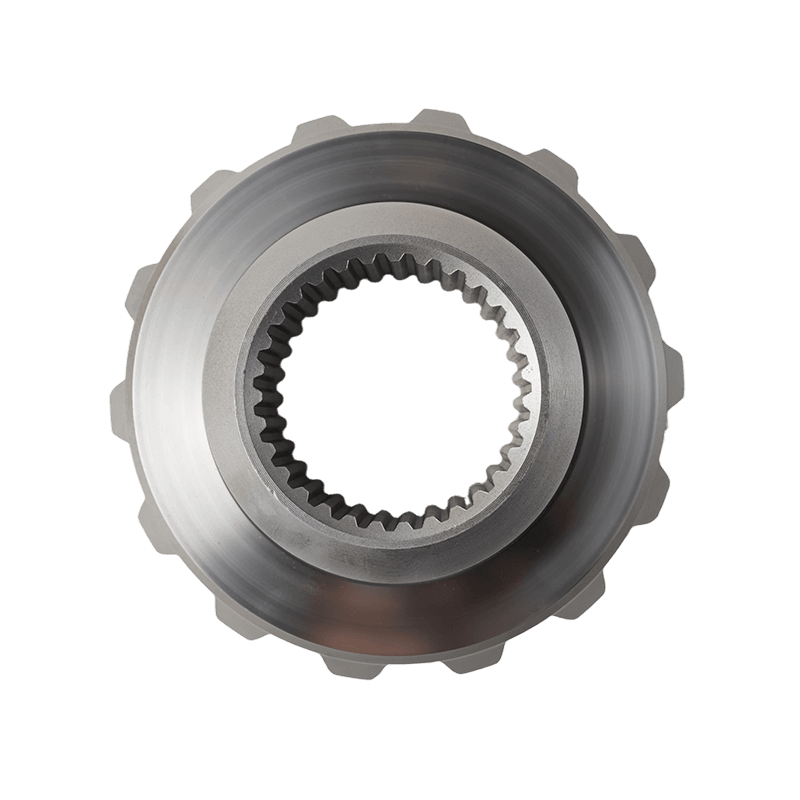

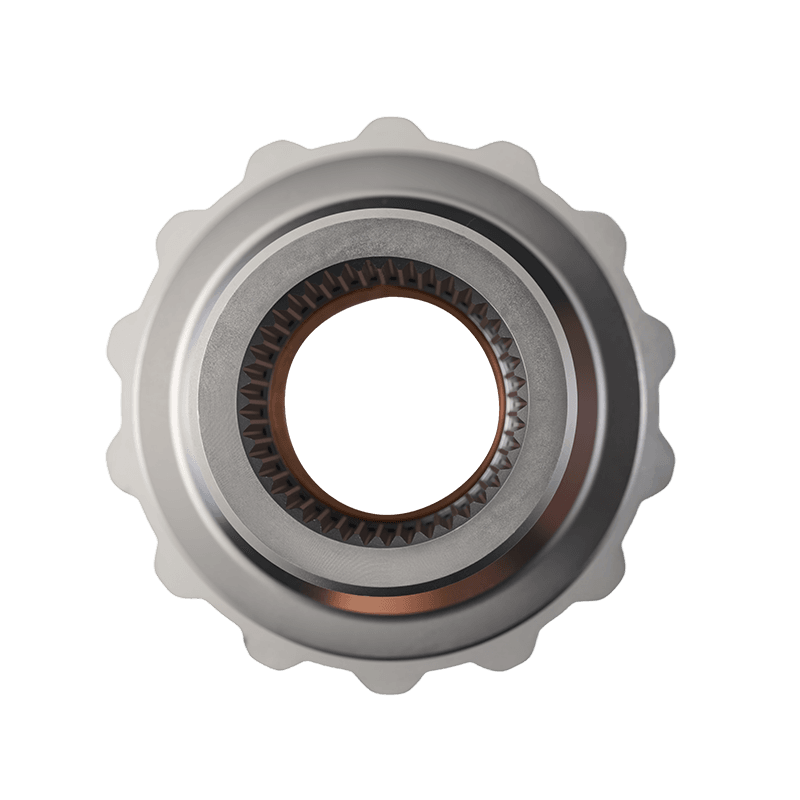

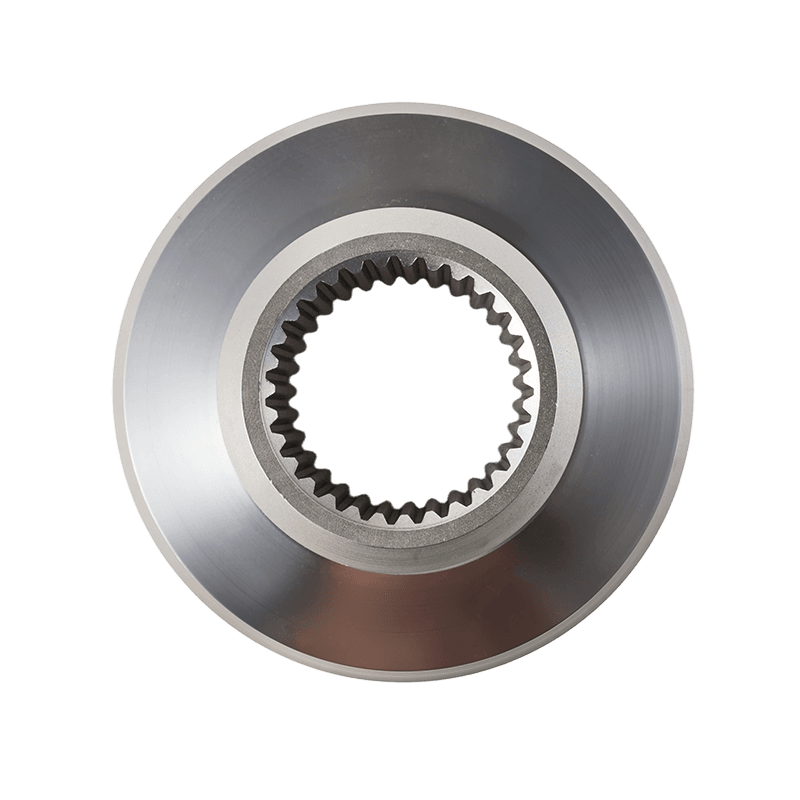

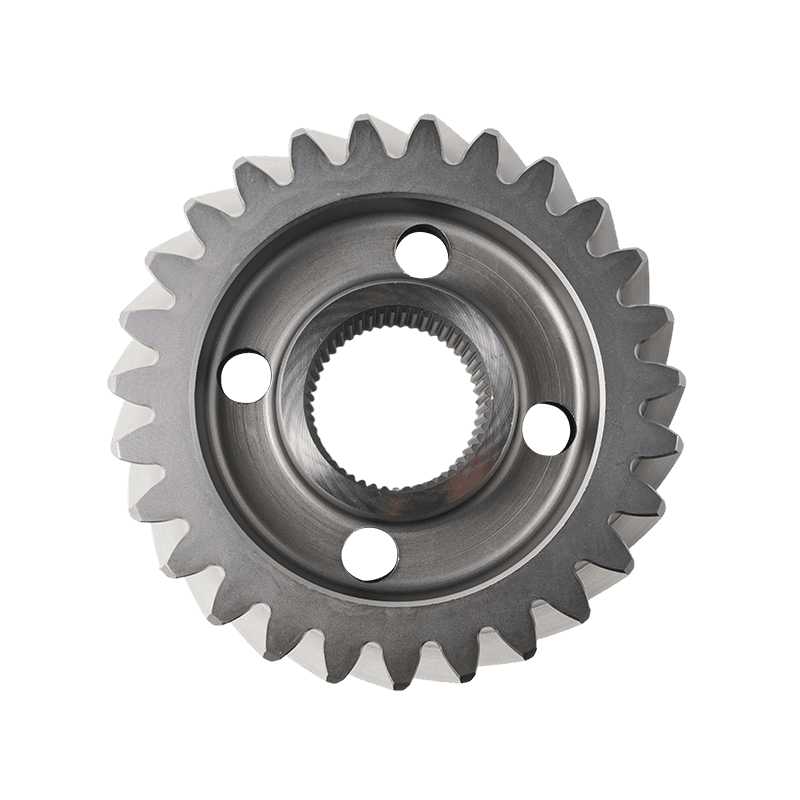

The main reducer gear set typically consists of a Ring Gear and a Pinion Gear, utilizing either Hypoid Gear or Spiral Bevel Gear meshing configurations. The ring gear is mounted on the differential housing, while the pinion gear connects to the drive shaft; the two are arranged in a spatially offset, 90-degree orientation relative to each other.

This structural design fulfills the following core functions:

• Speed ​​Reduction and Torque Amplification: Achieves a reduction in engine speed and an increase in output torque through a specific gear ratio.
• Directional Change: Converts the power from the longitudinally oriented drive shaft into lateral transmission directed toward the wheels.
• High Load-Bearing Capacity: Transmits the entirety of the engine's output torque within a confined spatial envelope.

Technical Characteristics and Manufacturing Requirements

The operating environment for the main reducer gear set is extremely demanding; it must withstand the shock loads associated with the engine's big torque while simultaneously ensuring smooth operation and low noise levels during high-speed rotation. Its technical characteristics are primarily manifested in the following areas:

• High Load-Bearing Capacity Requirements: The gear tooth surfaces must possess sufficient contact strength and bending strength. Typically, a carburizing and quenching process is employed to achieve a surface hardness of HRC 58–62, while maintaining a core toughness within the HRC 30–45 range.
• Precision Meshing Control: Tooth profile accuracy must meet DIN Grade 4–6 standards, and cumulative pitch error must be controlled within 0.02 mm to ensure smooth power transmission and effective noise suppression.
• Optimized Tooth Surface Modification: Techniques such as tooth tip relief and profile crowning are utilized to improve load distribution and mitigate the risk of edge contact.

During the manufacturing process, the precision finishing of the tooth profile following heat treatment constitutes a critical operation; gear grinding or honing processes are typically employed to eliminate heat-treatment-induced deformation and ensure the final meshing precision.

Differential Gears: The Core Mechanism Enabling Agile Steering

Functional Role and Structural Composition

The differential gear system is a critical device responsible for enabling a vehicle's steering function. When a vehicle turns, the inner and outer wheels must rotate at different speeds; the differential—through the differential action of its gear mechanism—automatically distributes torque between the left and right wheels while accommodating this difference in rotational speed.

A typical differential gear system comprises the following components:

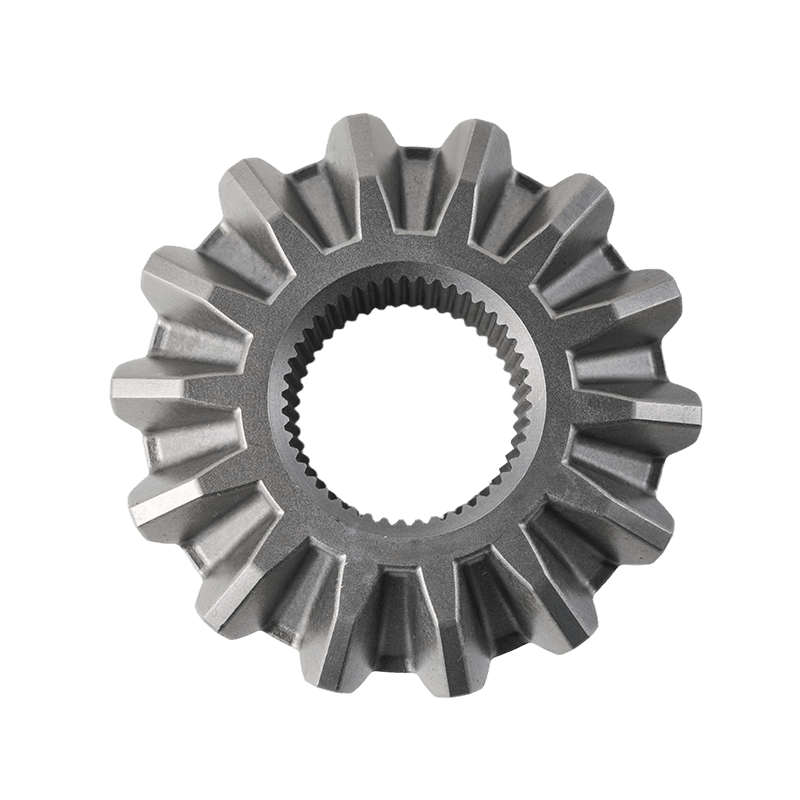

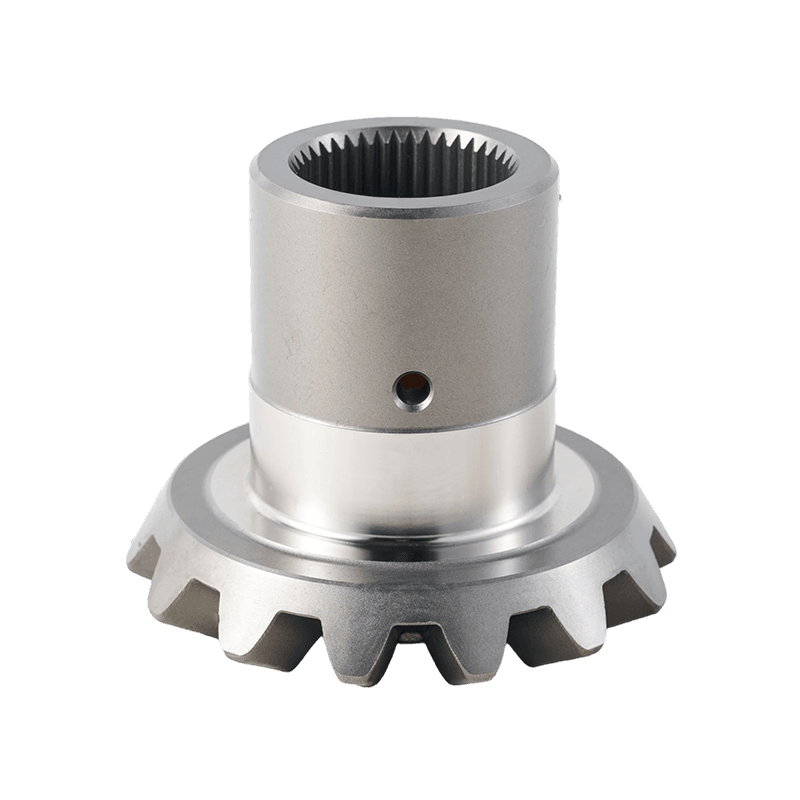

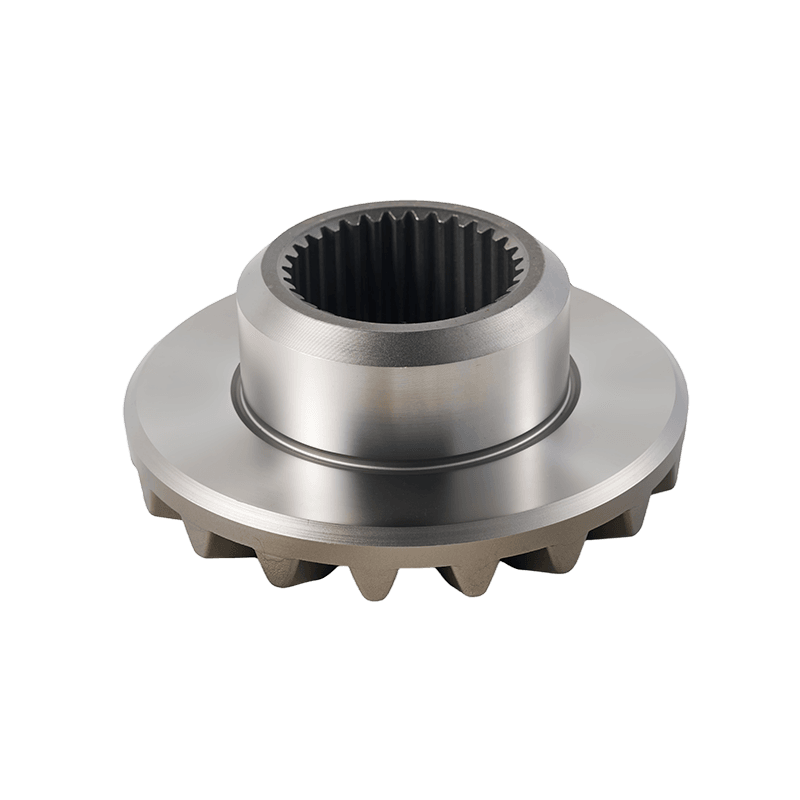

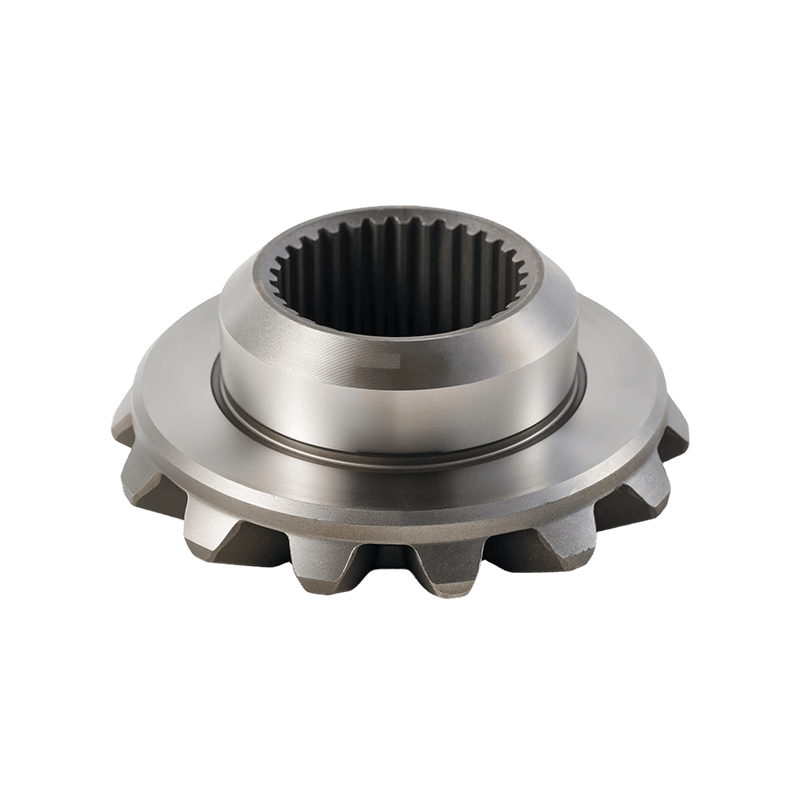

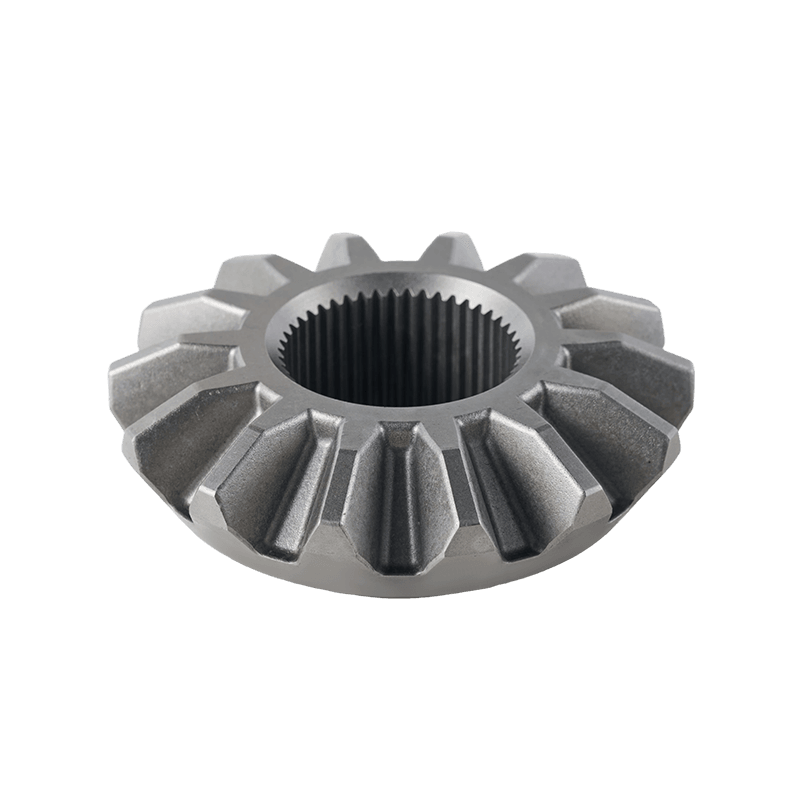

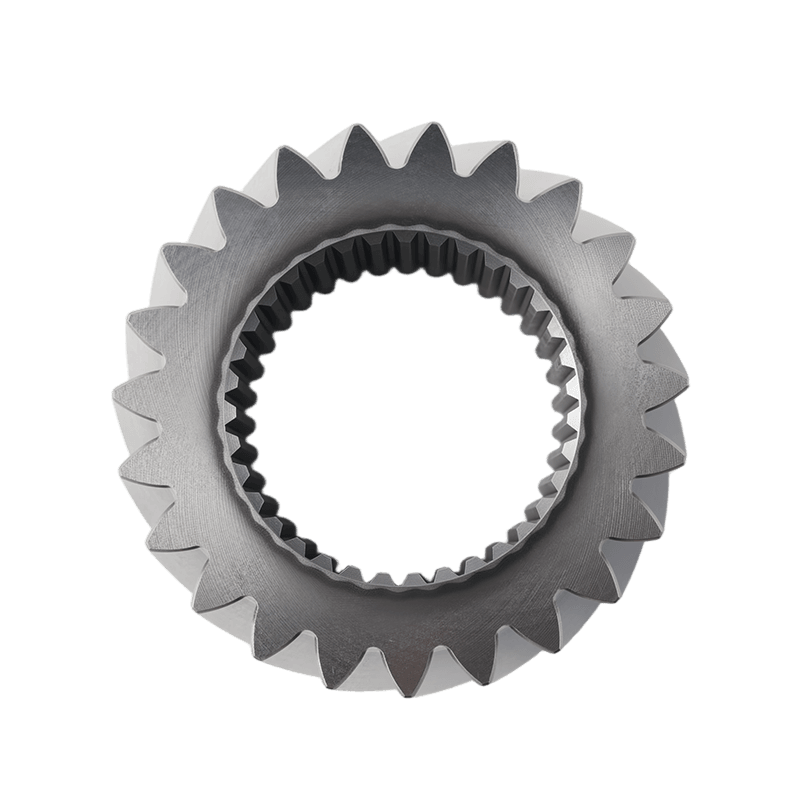

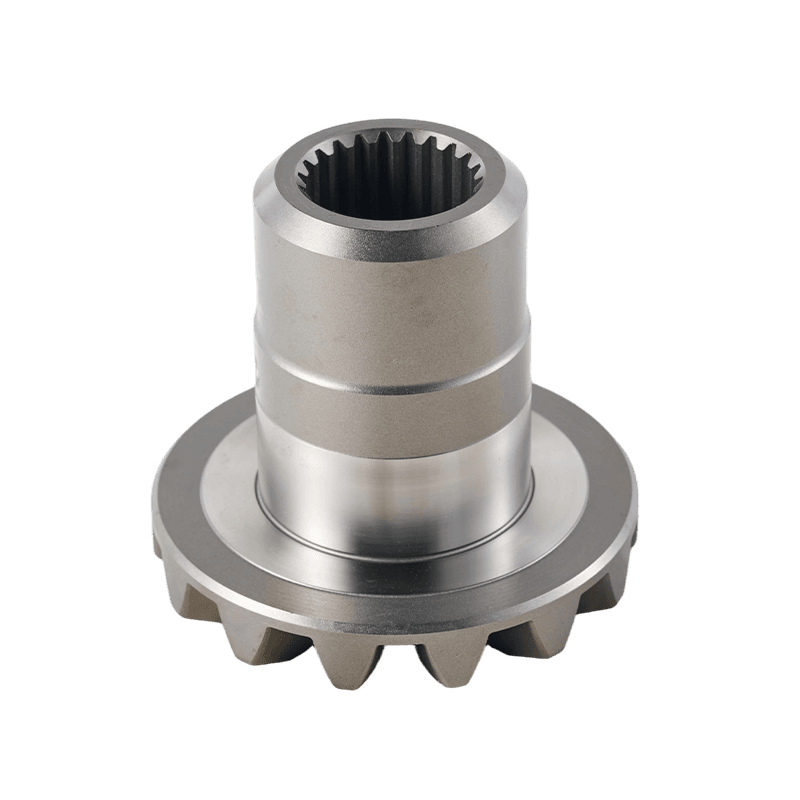

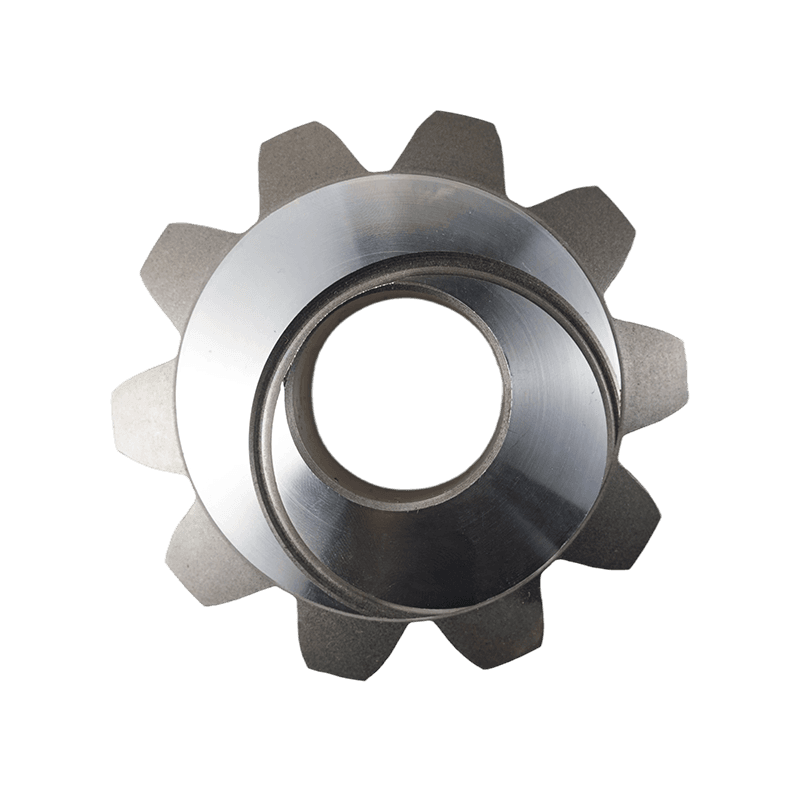

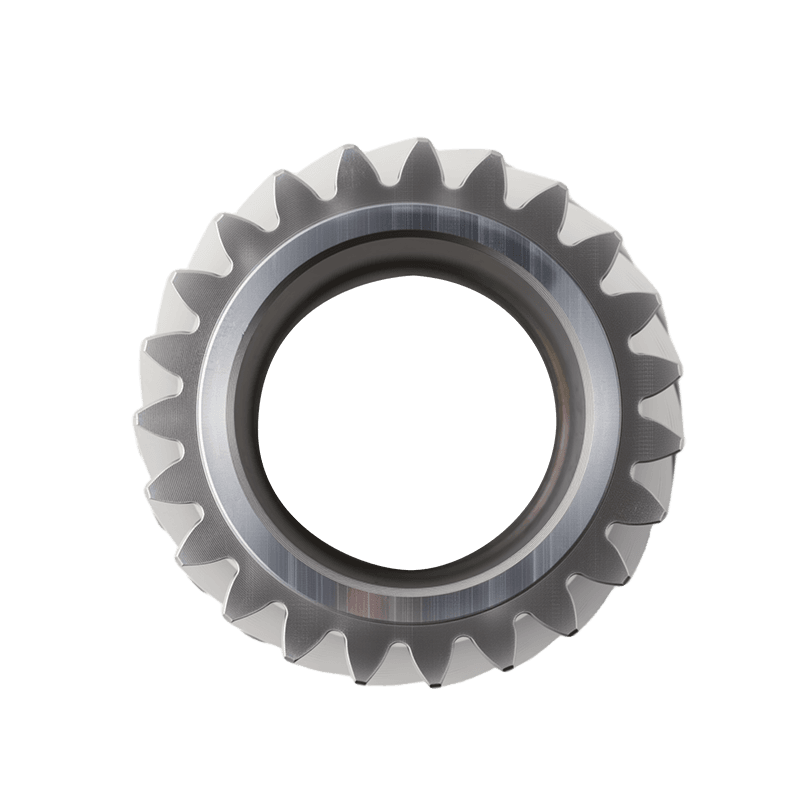

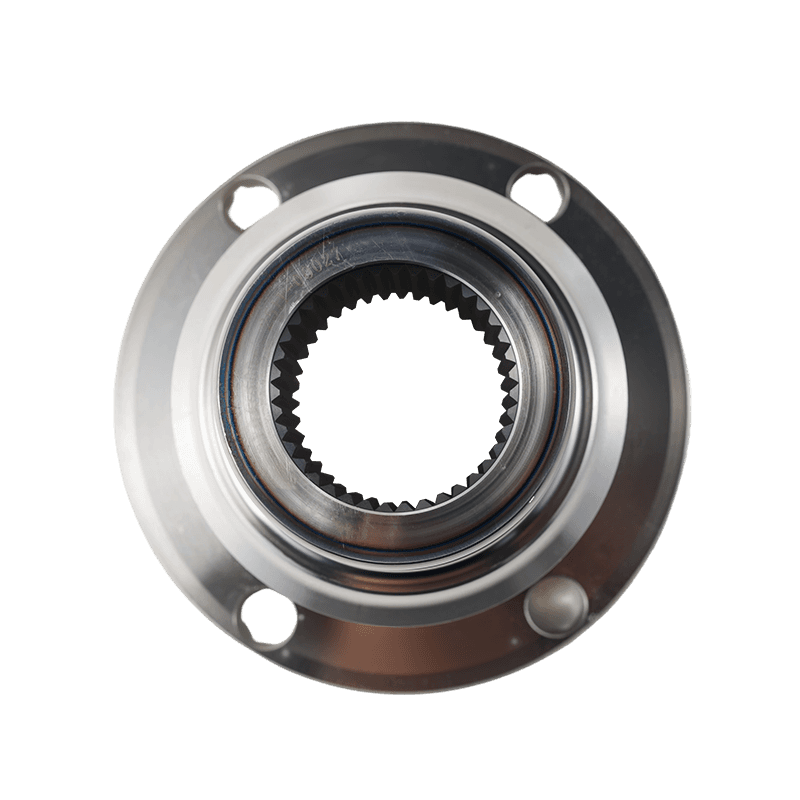

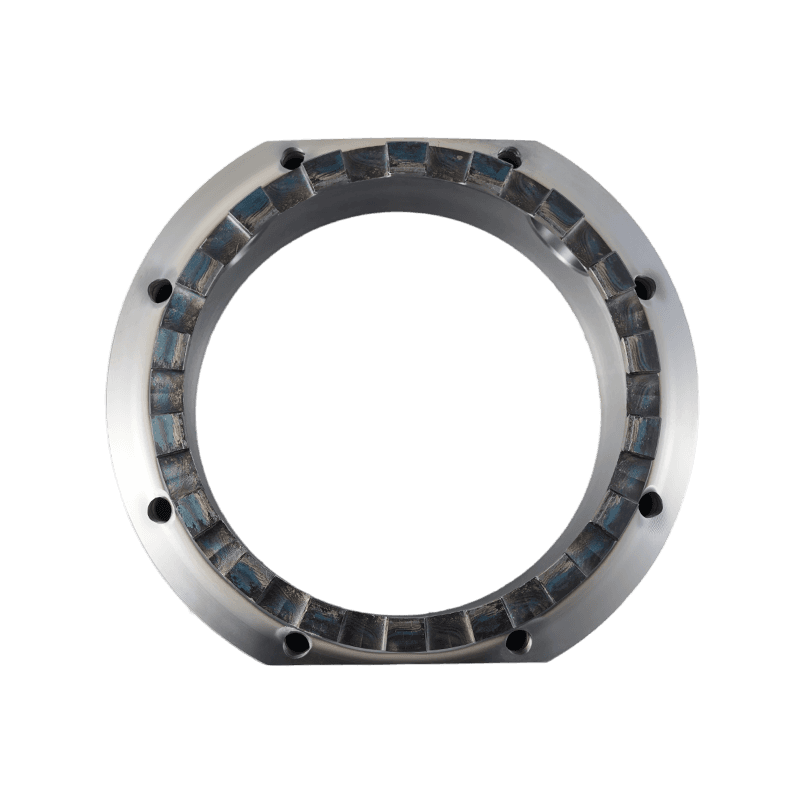

• Side Gears: Connected to the left and right axle shafts, they transmit power to the wheels.

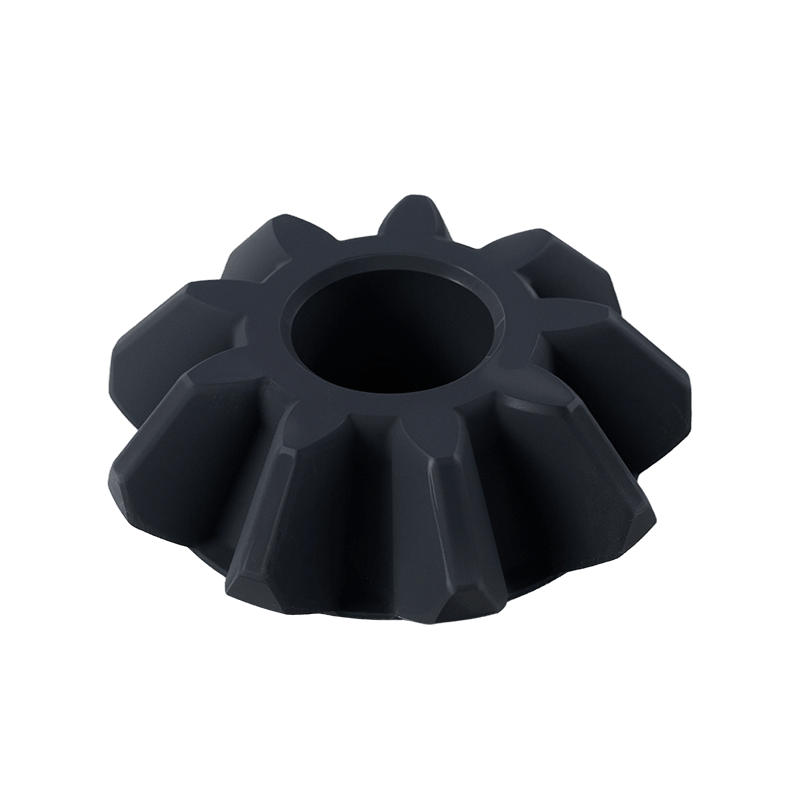

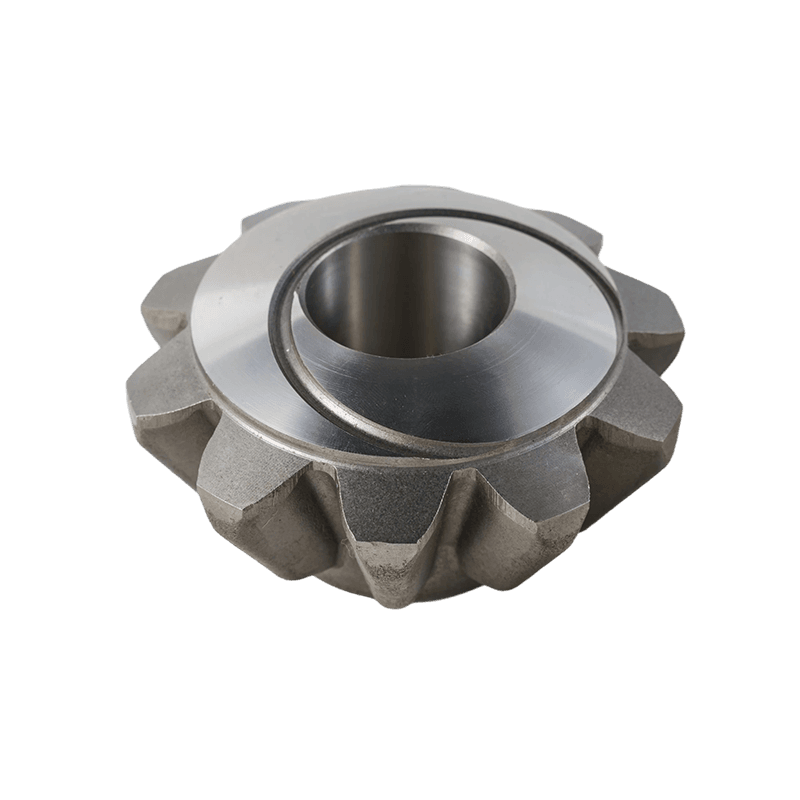

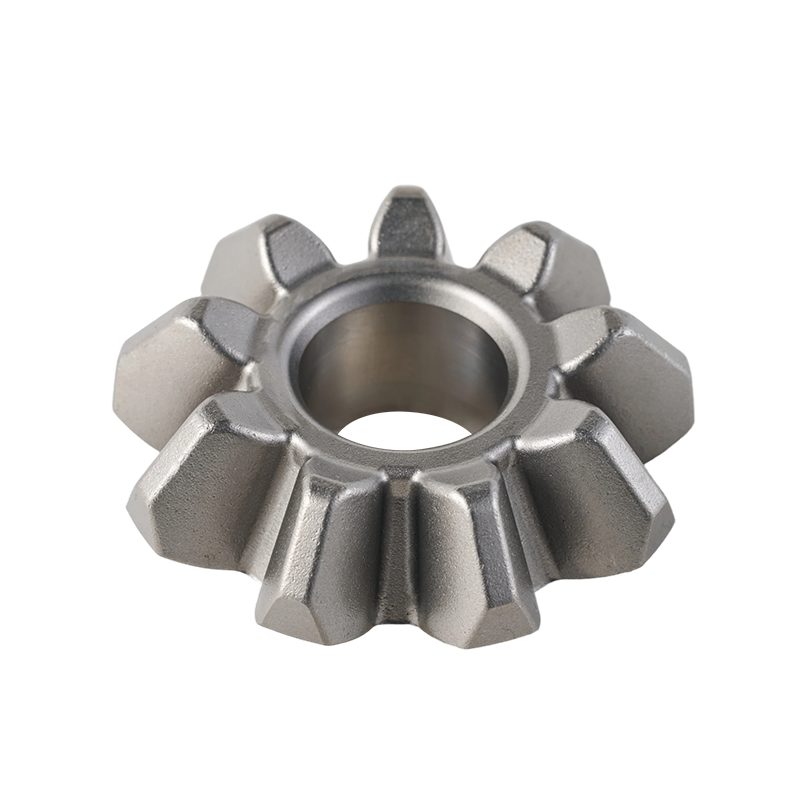

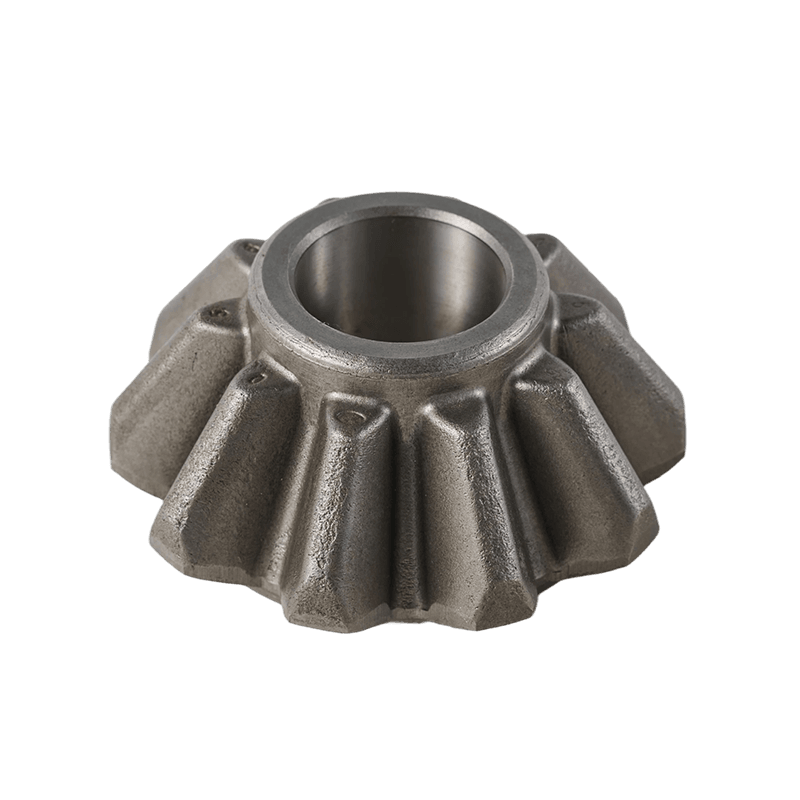

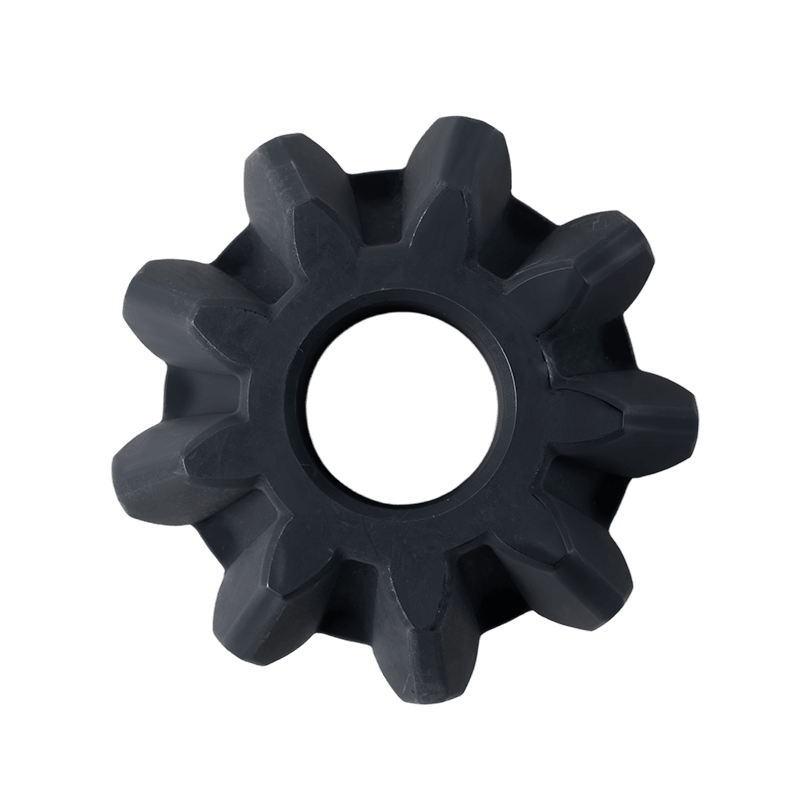

• Planet Gears: Mounted on the planet gear shafts, they facilitate the differential function.

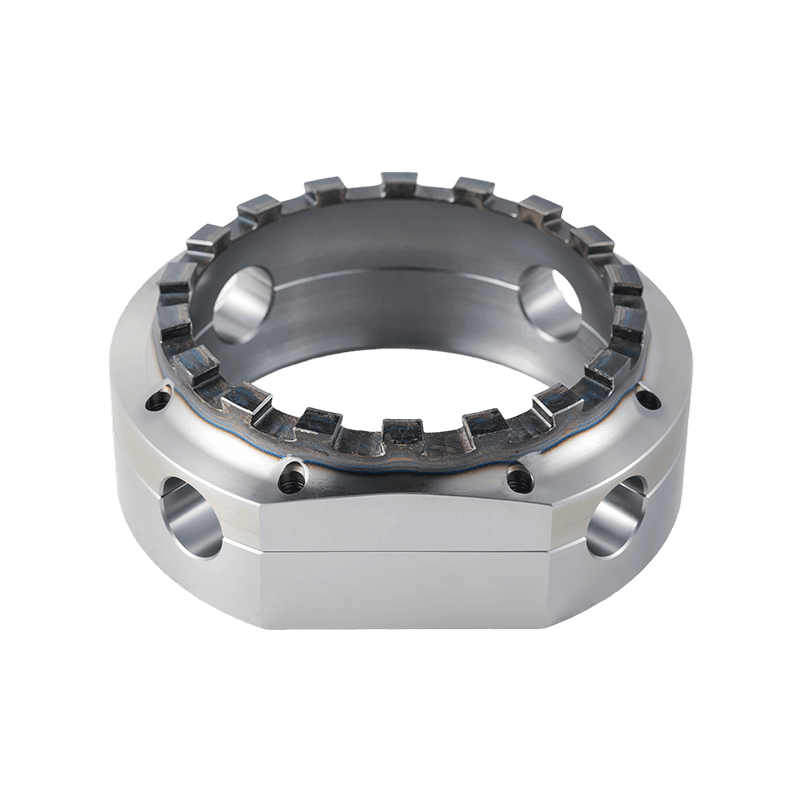

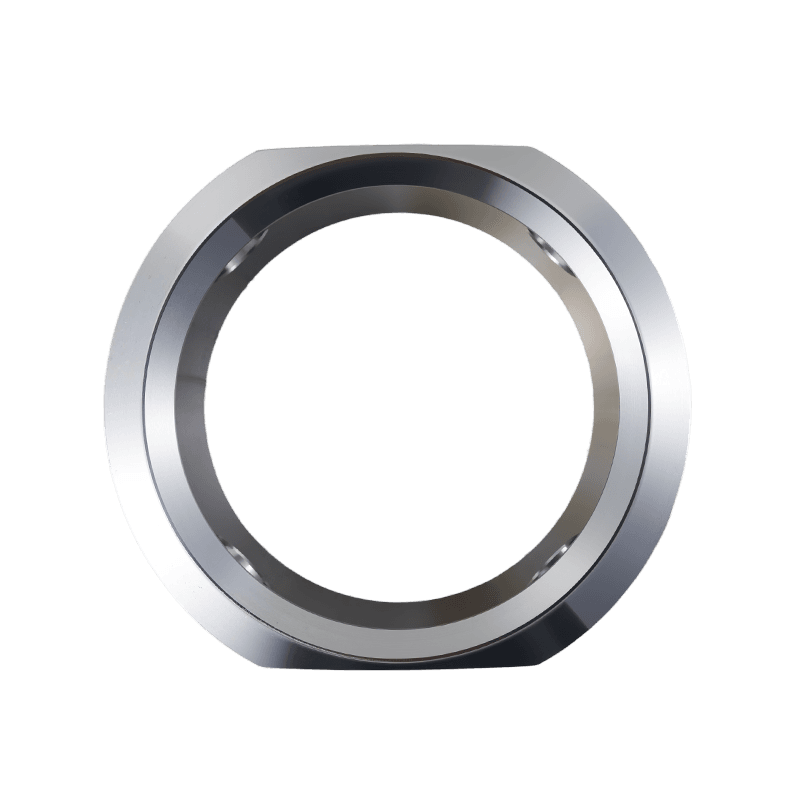

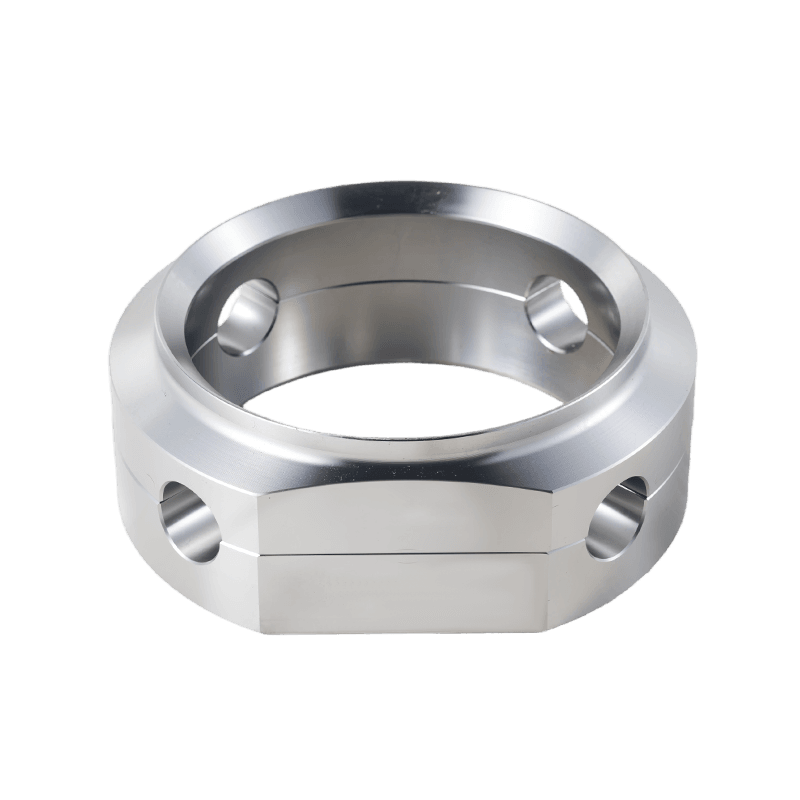

• Differential Case: Houses the entire gear system and connects to the ring gear of the final drive.

Operational Characteristics and Performance Optimization

When the vehicle is traveling in a straight line, the differential gears operate in a synchronized state, remaining relatively stationary with respect to one another. During a turn, however, the planet gears begin to rotate on their own axes, thereby enabling the differential action between the left and right side gears. This specific operational characteristic imposes unique requirements on gear design:

• Wear Resistance Optimization: Since the planet gears undergo relative sliding motion during differential operation, wear on the gear teeth surfaces constitutes the primary mode of failure. Modern manufacturing processes commonly employ surface hardening treatments—such as carbonitriding or ion nitriding—to enhance the wear resistance of the gear teeth surfaces.
• Precise Backlash Control: The backlash (clearance) between meshing gears must be controlled within a precise range of 0.05 to 0.15 mm. Excessive backlash can steering shock and noise, while insufficient backlash may result in binding or seizing during thermal expansion.
• Material Selection Considerations: Commonly used materials include alloy carburizing steels such as 20CrMnTi and 20CrNiMo; these materials ensure high structural strength while offering good machinability and heat-treatment processability.

Advancements in Limited-Slip Differential Technology

To enhance vehicle traction and drivability on low-grip road surfaces, Limited-Slip Differential (LSD) technology has gained widespread application. Utilizing mechanisms such as friction-plate clutches, Torsen-type gears, or electronic controls, these systems automatically restrict the differential action when a wheel begins to slip, thereby redirecting a greater proportion of torque to the wheels that retain traction. Such mechanisms impose more stringent demands on the strength and wear resistance of the gears, thereby driving the adoption of new materials and advanced manufacturing processes.

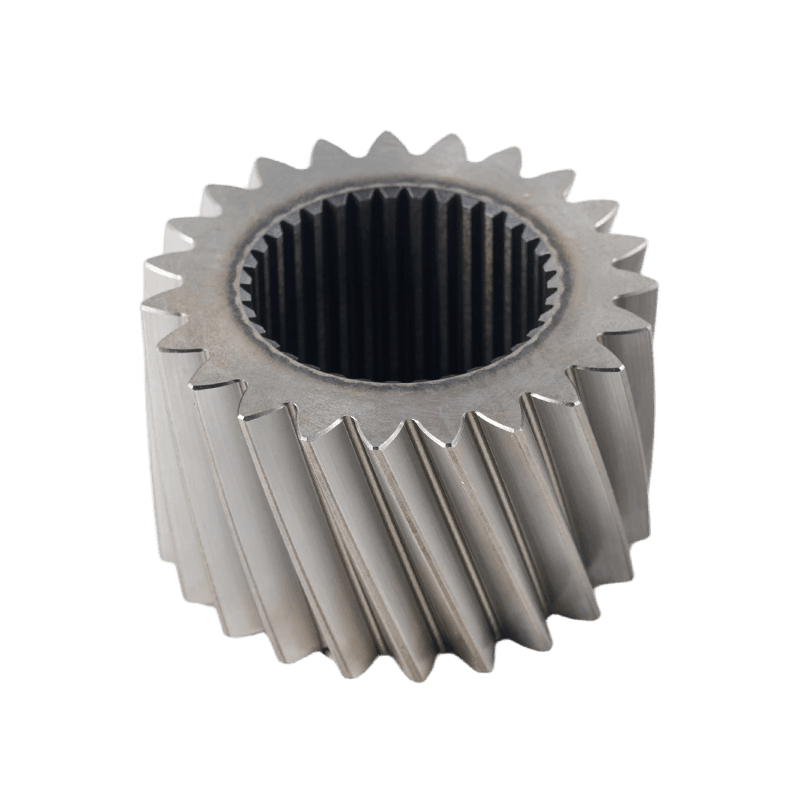

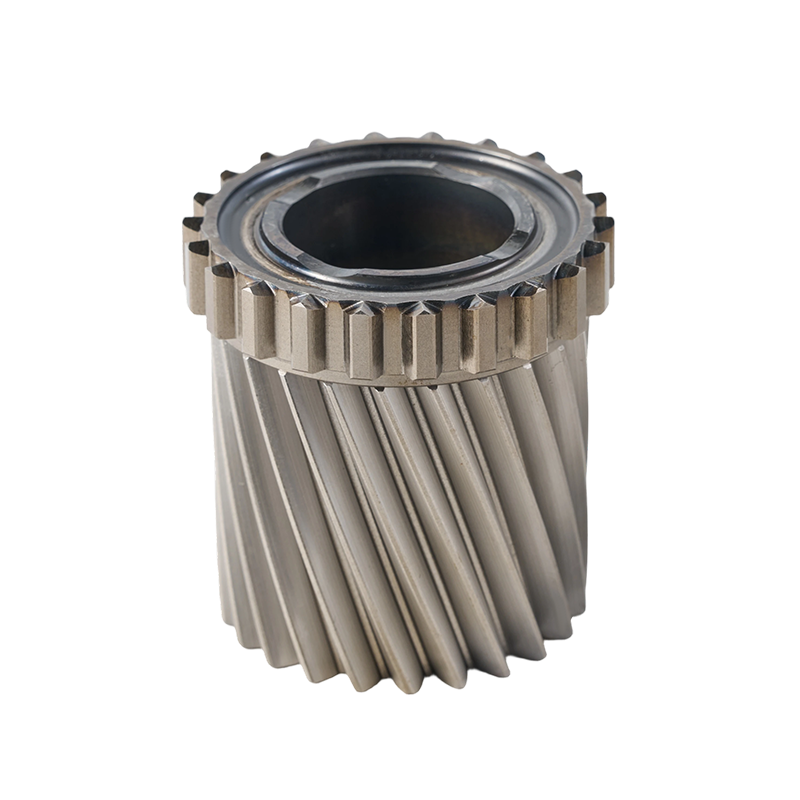

Precision-Machined Gears: Precision Defines Quality

The Essence and Standards of Precision Manufacturing

Precision-machined gears represent the pinnacle of gear manufacturing technology; their accuracy grades typically reach Levels 3 through 5 of the ISO 1328 standard. Precision gears demand not only exceptionally high geometric accuracy—encompassing tooth profile, lead, and pitch—but also impose rigorous requirements regarding surface roughness, residual stress distribution, and dynamic balance performance.

Key quality indicators for precision gears include:

• Total Profile Deviation: Typically required to be controlled within 0.003–0.008 mm.
• Total Lead Deviation: Controlled within 0.005–0.012 mm.
• Single Pitch Deviation: Not to exceed 0.003 mm.
• Tooth Surface Roughness: Ra 0.2–0.4 μm.

Advanced Manufacturing Process System

Achieving the precision machining of gears necessitates the support of a comprehensive process system:

• Precision Blank Forming: Utilizing precision forging or powder metallurgy (near-net shape forming) techniques to small subsequent machining allowances and ensure an good material flow line distribution.
• High-Efficiency Cutting: Employing coated carbide, ceramic, and CBN cutting tools—combined with high-speed cutting parameters—to achieve the efficient and precise machining of the tooth profile.
• Thermal Treatment Deformation Control: Applying advanced heat treatment processes—such as low-pressure carburizing and high-pressure gas quenching—to limit tooth profile deformation to an extremely small range.
• Finishing Processes: Correcting deformation induced by heat treatment and enhancing tooth surface quality through finishing operations such as gear grinding, honing, and lapping. Among these, worm-wheel grinding and form-wheel grinding represent the predominant technological approaches.

Inspection and Quality Control

Quality assurance for precision gears relies on a comprehensive inspection system:

• Coordinate Measuring Machine (CMM): Inspects the overall geometric accuracy of the gear.
• Gear Measuring Center: Specifically inspects parameters such as tooth profile, lead, and pitch.
• Surface Profilometer: Evaluates tooth surface roughness and waviness.
• Metallographic Analysis: Examines material microstructure and the distribution of the hardened layer.

Comparison of Technical Parameters for Three Types of Gear Components
