ICE & Commercial Vehicle Gears

Commercial Vehicle Gears, Internal Combustion Engine (ICE) Gears, and Manual Transmission Gears constitute three distinct categories of core transmission components within this system, each with its own specific functional focus. While mutually independent, these three categories also form a synergistic relationship within the vehicle's overall powertrain: ICE gears generate and regulate the initial power output; manual transmission gears execute gear shifting and speed regulation; and commercial vehicle gears ensure the reliable transmission of torque under heavy-load operating conditions.

Commercial Vehicle Gears

Definition and Application Context

Commercial vehicle gears are transmission gears specifically designed for trucks, buses, construction vehicles, and specialized transport equipment. Their operating environments are typically far more demanding than those of passenger vehicles, characterized by heavy loads, complex driving conditions, and prolonged periods of continuous operation. Consequently, commercial vehicle gears are subject to more stringent requirements regarding structural strength, load-bearing capacity, and durability in their design.

Key Functional Characteristics

• High Torque Transmission Capability: As commercial vehicles frequently undertake heavy-duty transport tasks, their gears must possess the capacity to withstand high-torque shock loads; consequently, both the face width and module of these gears are significantly larger than those of passenger vehicle gears
• Multi-Gear Adaptability: Commercial vehicle transmissions typically feature between 8 and 16 forward gears, involving a large number of gear combinations; this necessitates a balanced and precise match between the accuracy and strength of the gears for each specific gear ratio
• High-Temperature and Wear Resistance: Under long-distance, heavy-load operating conditions, oil temperatures remain consistently elevated, placing high demands on the thermal stability and wear resistance of the gear tooth surfaces
• Controllable Maintenance Costs: Given the economic imperatives associated with commercial vehicles, gear designs must strike a balance between ease of maintenance and the establishment of reasonable replacement intervals

Internal Combustion Engine (ICE) Gears

Role within the Powertrain System

ICE gears refer broadly to the various gears installed within the internal mechanisms of traditional fuel-powered engines, as well as those located within their ancillary transmission systems; they serve as core transmission components at the power-generation end of the system. Their primary function is to reliably transmit power within the engine compartment—an environment characterized by high temperatures, high rotational speeds, and high pressures—while simultaneously driving auxiliary systems—such as the valve train, oil pump, and water pump—to ensure their synchronized operation.

Typical Types and Functions

• Timing Gears: Responsible for coordinating the rotational phasing of the crankshaft and camshaft, ensuring that the opening and closing timing of the intake and exhaust valves is precisely synchronized with piston movement; they serve as a critical safeguard for the engine's proper operation
• Oil Pump Drive Gears: Transmit power from the crankshaft to the oil pump, maintaining a continuous supply of oil to the lubrication system and preventing dry friction between internal engine friction pairs
• Balance Shaft Gears: Used to counteract the unbalanced inertial forces generated by reciprocating motion, thereby effectively reducing engine vibration and noise
• Starter Drive Gears: Engage with the flywheel ring gear during the engine starting phase to transmit starting torque; they automatically disengage once the engine has started to prevent damage caused by overspeeding

Manual Transmission Gears

Brief Overview of Operating Principles

A manual transmission achieves the stepped regulation of rotational speed and torque by allowing the driver to actively manipulate the clutch and shift forks to engage gear pairs with different transmission ratios. Compared to automatic transmissions, manual transmissions feature a relatively simpler structure, high transmission efficiency, and lower manufacturing and maintenance costs; they remain widely utilized in commercial vehicles, sports cars, and certain types of industrial equipment.

Core Functional Features

• Stepped Gearing: Each gear position corresponds to a specific pair of gears with a fixed transmission ratio; lower gears provide high torque suitable for starting and hill climbing, while higher gears allow for higher rotational speeds suitable for high-speed cruising
• Synchronizer Integration: Modern manual transmissions are universally equipped with synchronizer rings, which help equalize the rotational speeds of the driving and driven gears prior to shifting, thereby reducing shifting shock and protecting the gear teeth surfaces

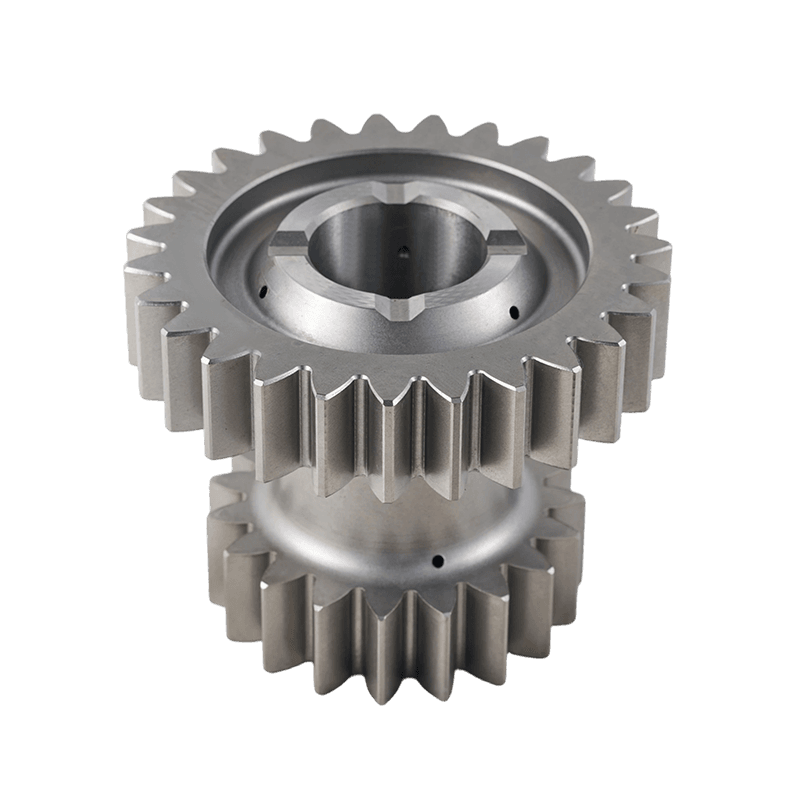

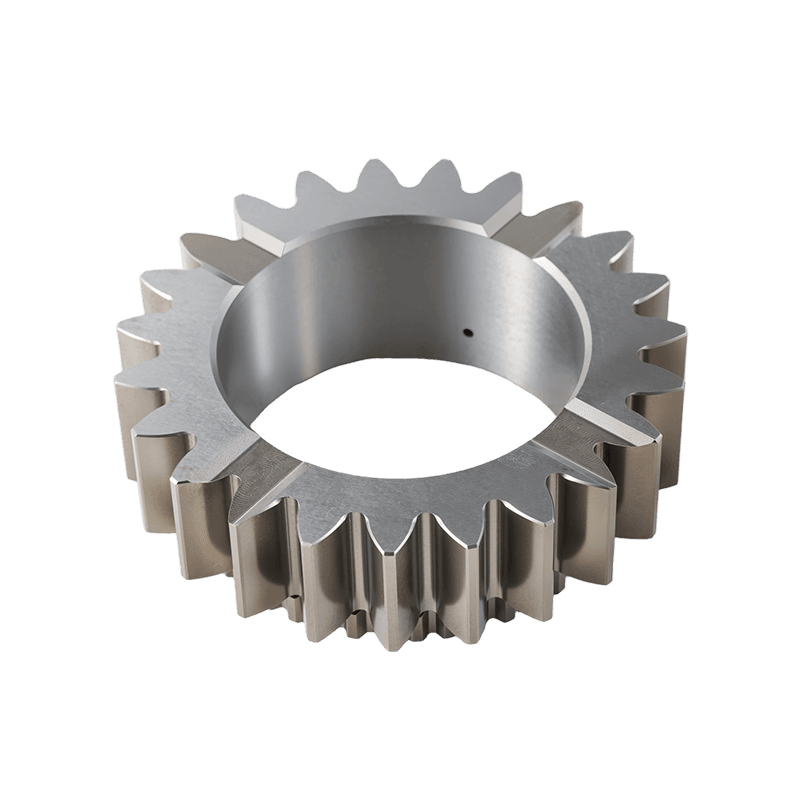

• Neutral and Reverse Gear Design: In the neutral position, the transmission chain is disengaged; reverse gear is achieved by introducing an idler gear to reverse the direction of rotation, placing specific demands on the strength and impact resistance of the corresponding gears
• High Transmission Efficiency: The transmission efficiency of a manual transmission typically ranges between 96% and 98%, surpassing that of hydraulic automatic transmissions and contributing to reduced overall vehicle fuel consumption

Comprehensive Comparison of the Three Gear Categories

Selection and Usage Considerations

In practical applications, the selection of these three gear categories should be based on a comprehensive assessment of the vehicle's intended use, operating conditions, and budget constraints. The following points are particularly important regarding daily use and maintenance:

• Lubricant Grade Matching: Transmissions in commercial vehicles, internal combustion engines, and manual gearboxes all require lubricants that comply with original equipment manufacturer (OEM) specifications. Deviations in lubricant grade or viscosity can significantly compromise gear lubrication effectiveness and service life
• Proper Shifting Practices: Wear on manual transmission gears is largely attributable to improper shifting techniques; drivers should cultivate driving habits that involve fully depressing the clutch and executing smooth gear shifts
• Regular Fluid Checks: Lubrication of the internal combustion engine's timing system relies on the quality of the engine oil. Oil changes should be performed promptly according to the prescribed maintenance schedule to prevent sludge accumulation from impairing the lubrication of the timing gears
• Prompt Investigation of Abnormal Noises: Any abnormal whining, knocking, or clicking sounds emanating from the transmission or engine compartment typically serve as early warning signals of gear wear, bearing damage, or inadequate lubrication; these issues should be diagnosed as soon as possible
• Standardized Spare Parts Selection: When replacing gear components, it is essential to select products that precisely match the vehicle's original technical specifications, ensuring consistency in module, tooth count, precision grade, and mating dimensions
